basic stream socket class. More...

#include <stream_socket.hpp>

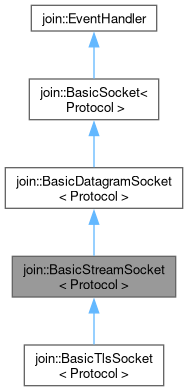

Inheritance diagram for join::BasicStreamSocket< Protocol >:

[legend]

Collaboration diagram for join::BasicStreamSocket< Protocol >:

[legend]

Public Types
using	Ptr = std::unique_ptr<BasicStreamSocket<Protocol>>

using	Mode = typename BasicRawSocket<Protocol>::Mode

using	Option = typename BasicRawSocket<Protocol>::Option

using	State = typename BasicRawSocket<Protocol>::State

using	Endpoint = typename Protocol::Endpoint

using	TimePoint = typename BasicRawSocket<Protocol>::TimePoint

Public Types inherited from join::BasicRawSocket< Protocol >
enum	Option { NoDelay , KeepAlive , KeepIdle , KeepIntvl , KeepCount , SndBuffer , RcvBuffer , TimeStamp , ReuseAddr , ReusePort , Broadcast , Ttl , MulticastLoop , MulticastTtl , PathMtuDiscover , RcvError , AuxData }
	socket options. More...

using	Ptr = std::unique_ptr<BasicRawSocket<Protocol>>

using	Mode = typename BasicSocket<Protocol>::Mode

using	State = typename BasicSocket<Protocol>::State

using	Endpoint = typename Protocol::Endpoint

Public Types inherited from join::BasicSocket< Protocol >
enum	Mode { Blocking , NonBlocking }
	socket modes. More...

enum	State { Connecting , Connected , Disconnecting , Disconnected , Closed }
	socket states. More...

using	Ptr = std::unique_ptr<BasicSocket<Protocol>>

using	Endpoint = typename Protocol::Endpoint

using	TimePoint = std::chrono::steady_clock::time_point

Public Member Functions
	BasicStreamSocket () noexcept
	default constructor.

	BasicStreamSocket (Mode mode) noexcept
	create instance specifying the mode.

	BasicStreamSocket (int fd, const Endpoint &remote, Mode mode=Mode::NonBlocking)
	create the socket instance adopting an accepted file descriptor.

	BasicStreamSocket (const BasicStreamSocket &other)=delete
	copy constructor.

BasicStreamSocket &	operator= (const BasicStreamSocket &other)=delete
	copy assignment operator.

	BasicStreamSocket (BasicStreamSocket &&other) noexcept
	move constructor.

BasicStreamSocket &	operator= (BasicStreamSocket &&other) noexcept
	move assignment operator.

	~BasicStreamSocket ()=default
	destroy the instance.

int	connect (const Endpoint &endpoint) noexcept
	make a connection to the given endpoint.

bool	waitConnected ()
	block until connected.

bool	waitConnected (std::chrono::nanoseconds timeout)
	block until connected, giving up after the given duration.

bool	waitConnected (TimePoint deadline)
	block until connected, giving up at the given time point.

int	disconnect () noexcept
	shutdown the connection.

bool	waitDisconnected ()
	wait until the connection as been shut down. return true if the connection as been shut down, false otherwise.

bool	waitDisconnected (std::chrono::nanoseconds timeout)
	wait until the connection as been shut down, giving up after the given duration.

bool	waitDisconnected (TimePoint deadline)
	wait until the connection as been shut down, giving up at the given time point.

void	close () noexcept override
	close the socket handle.

ssize_t	read (char *data, size_t maxSize) noexcept
	read data.

int	readExactly (char *data, size_t size) noexcept
	read data until size is reached or an error occurred.

int	readExactly (char *data, size_t size, std::chrono::nanoseconds timeout) noexcept
	read data until size is reached, an error occurred or the given duration elapsed.

int	readExactly (char *data, size_t size, TimePoint deadline) noexcept
	read data until size is reached, an error occurred or the deadline expired.

int	writeExactly (const char *data, size_t size) noexcept
	write data until size is reached or an error occurred.

int	writeExactly (const char *data, size_t size, std::chrono::nanoseconds timeout) noexcept
	write data until size is reached, an error occurred or the given duration elapsed.

int	writeExactly (const char *data, size_t size, TimePoint deadline) noexcept
	write data until size is reached, an error occurred or the deadline expired.

int	setOption (Option option, int value) noexcept override
	set the given option to the given value.

const Endpoint &	remoteEndpoint () const noexcept
	determine the remote endpoint associated with this socket.

bool	connecting () const noexcept
	check if the socket is connecting.

bool	connected () noexcept
	check if the socket is connected.

int	mtu () const noexcept
	get socket mtu.

Public Member Functions inherited from join::BasicRawSocket< Protocol >
	BasicRawSocket () noexcept
	default constructor.

	BasicRawSocket (Mode mode) noexcept
	create socket instance specifying the mode.

	BasicRawSocket (const BasicRawSocket &other)=delete
	copy constructor.

BasicRawSocket &	operator= (const BasicRawSocket &other)=delete
	copy assignment operator.

	BasicRawSocket (BasicRawSocket &&other) noexcept=default
	move constructor.

BasicRawSocket &	operator= (BasicRawSocket &&other) noexcept=default
	move assignment operator.

virtual	~BasicRawSocket ()=default
	destroy the socket instance.

int	bind (const Endpoint &endpoint) noexcept override
	assigns the specified endpoint to the socket.

int	bindToDevice (const std::string &device) noexcept
	assigns the specified device to the socket.

ssize_t	canRead () const noexcept
	get the number of readable bytes.

ssize_t	read (char *data, size_t maxSize) noexcept
	read data.

ssize_t	write (const char *data, size_t maxSize) noexcept
	write data.

Public Member Functions inherited from join::BasicSocket< Protocol >
	BasicSocket () noexcept
	default constructor.

	BasicSocket (Mode mode) noexcept
	create socket instance specifying the mode.

	BasicSocket (const BasicSocket &other)=delete
	copy constructor.

BasicSocket &	operator= (const BasicSocket &other)=delete
	copy assignment operator.

	BasicSocket (BasicSocket &&other) noexcept
	move constructor.

BasicSocket &	operator= (BasicSocket &&other) noexcept
	move assignment operator.

virtual	~BasicSocket ()
	destroy the socket instance.

virtual int	open (const Protocol &protocol=Protocol()) noexcept
	open socket using the given protocol.

bool	waitReadyRead () const noexcept
	block until new data is available for reading.

bool	waitReadyRead (std::chrono::nanoseconds timeout) const noexcept
	block until new data is available for reading, giving up after the given duration.

bool	waitReadyRead (TimePoint deadline) const noexcept
	block until new data is available for reading, giving up at the given time point.

bool	waitReadyWrite () const noexcept
	block until at least one byte can be written.

bool	waitReadyWrite (std::chrono::nanoseconds timeout) const noexcept
	block until at least one byte can be written, giving up after the given duration.

bool	waitReadyWrite (TimePoint deadline) const noexcept
	block until at least one byte can be written, giving up at the given time point.

void	setMode (Mode mode) noexcept
	set the socket to the non-blocking or blocking mode.

Endpoint	localEndpoint () const noexcept
	determine the local endpoint associated with this socket.

bool	opened () const noexcept
	check if the socket is opened.

int	family () const noexcept
	get socket address family.

int	type () const noexcept
	get the protocol communication semantic.

int	protocol () const noexcept
	get socket protocol.

Mode	mode () const noexcept
	get the blocking mode of the socket.

int	handle () const noexcept
	get socket native handle.

int	wait (bool wantRead, bool wantWrite) const noexcept
	wait for the socket handle to become ready.

int	waitFor (bool wantRead, bool wantWrite, std::chrono::nanoseconds timeout) const noexcept
	wait for the socket handle to become ready, giving up after the given duration.

int	waitUntil (bool wantRead, bool wantWrite, TimePoint deadline) const noexcept
	wait for the socket handle to become ready, giving up at the given time point.

Protected Attributes
Endpoint	_remote
	remote endpoint.

Protected Attributes inherited from join::BasicSocket< Protocol >
State	_state = State::Closed
	socket state.

Mode	_mode = Mode::NonBlocking
	socket mode.

int	_handle = -1
	socket handle.

Protocol	_protocol
	protocol.

Friends
template<class P , class E , size_t N>
class	BasicAsyncStreamSocket
	friendship with basic asynchronous stream socket

Detailed Description

template<class Protocol>
class join::BasicStreamSocket< Protocol >

basic stream socket class.

Member Typedef Documentation

◆ Endpoint

template<class Protocol >

using join::BasicStreamSocket< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Mode

template<class Protocol >

using join::BasicStreamSocket< Protocol >::Mode = typename BasicRawSocket<Protocol>::Mode

◆ Option

template<class Protocol >

using join::BasicStreamSocket< Protocol >::Option = typename BasicRawSocket<Protocol>::Option

◆ Ptr

template<class Protocol >

using join::BasicStreamSocket< Protocol >::Ptr = std::unique_ptr<BasicStreamSocket<Protocol>>

◆ State

template<class Protocol >

using join::BasicStreamSocket< Protocol >::State = typename BasicRawSocket<Protocol>::State

◆ TimePoint

template<class Protocol >

using join::BasicStreamSocket< Protocol >::TimePoint = typename BasicRawSocket<Protocol>::TimePoint

Constructor & Destructor Documentation

◆ BasicStreamSocket() [1/5]

template<class Protocol >

join::BasicStreamSocket< Protocol >::BasicStreamSocket ( )

inlinenoexcept

default constructor.

◆ BasicStreamSocket() [2/5]

template<class Protocol >

join::BasicStreamSocket< Protocol >::BasicStreamSocket ( Mode mode )

inlineexplicitnoexcept

create instance specifying the mode.

Parameters

mode	Set the socket blocking mode.

◆ BasicStreamSocket() [3/5]

template<class Protocol >

join::BasicStreamSocket< Protocol >::BasicStreamSocket	(	int	fd,
		const Endpoint &	remote,
		Mode	mode = Mode::NonBlocking )

inlineexplicit

create the socket instance adopting an accepted file descriptor.

Parameters

fd	accepted file descriptor.
remote	endpoint of the connected peer, as reported by the accept.
mode	blocking mode the file descriptor was accepted with.

◆ BasicStreamSocket() [4/5]

template<class Protocol >

join::BasicStreamSocket< Protocol >::BasicStreamSocket ( const BasicStreamSocket< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicStreamSocket() [5/5]

template<class Protocol >

join::BasicStreamSocket< Protocol >::BasicStreamSocket ( BasicStreamSocket< Protocol > && other )

inlinenoexcept

move constructor.

Parameters

other other object to move.

◆ ~BasicStreamSocket()

template<class Protocol >

join::BasicStreamSocket< Protocol >::~BasicStreamSocket ( )

default

destroy the instance.

Member Function Documentation

◆ close()

template<class Protocol >

void join::BasicStreamSocket< Protocol >::close ( )

inlineoverridevirtualnoexcept

close the socket handle.

Reimplemented from join::BasicSocket< Protocol >.

◆ connect()

template<class Protocol >

int join::BasicStreamSocket< Protocol >::connect ( const Endpoint & endpoint )

inlinenoexcept

make a connection to the given endpoint.

Parameters

endpoint endpoint to connect to.

Returns: 0 on success, -1 on failure.

◆ connected()

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::connected ( )

inlinenoexcept

check if the socket is connected.

Returns: true if connected, false otherwise.

Note: this method probes SO_ERROR and updates the internal state when a pending connection completes, it is therefore not const.

◆ connecting()

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::connecting ( ) const

inlinenoexcept

check if the socket is connecting.

Returns: true if connecting, false otherwise.

◆ disconnect()

template<class Protocol >

int join::BasicStreamSocket< Protocol >::disconnect ( )

inlinenoexcept

shutdown the connection.

Returns: 0 on success, -1 on failure.

◆ mtu()

template<class Protocol >

int join::BasicStreamSocket< Protocol >::mtu ( ) const

inlinenoexcept

get socket mtu.

Returns: mtu on success, -1 on failure.

◆ operator=() [1/2]

template<class Protocol >

BasicStreamSocket & join::BasicStreamSocket< Protocol >::operator= ( BasicStreamSocket< Protocol > && other )

inlinenoexcept

move assignment operator.

Parameters

other other object to assign.

Returns: assigned object.

◆ operator=() [2/2]

template<class Protocol >

BasicStreamSocket & join::BasicStreamSocket< Protocol >::operator= ( const BasicStreamSocket< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to assign.

Returns: assigned object.

◆ read()

template<class Protocol >

ssize_t join::BasicStreamSocket< Protocol >::read	(	char *	data,
		size_t	maxSize )

inlinenoexcept

read data.

Parameters

data	buffer used to store the data received.
maxSize	maximum number of bytes to read.

Returns: the number of bytes received, -1 on failure.

◆ readExactly() [1/3]

template<class Protocol >

int join::BasicStreamSocket< Protocol >::readExactly	(	char *	data,
		size_t	size )

inlinenoexcept

read data until size is reached or an error occurred.

Parameters

data	buffer used to store the data received.
size	number of bytes to read.

Returns: 0 on success, -1 on failure.

◆ readExactly() [2/3]

template<class Protocol >

int join::BasicStreamSocket< Protocol >::readExactly	(	char *	data,
		size_t	size,
		std::chrono::nanoseconds	timeout )

inlinenoexcept

read data until size is reached, an error occurred or the given duration elapsed.

Parameters

data	buffer used to store the data received.
size	number of bytes to read.
timeout	maximum time granted to the whole read.

Returns: 0 on success, -1 on failure.

◆ readExactly() [3/3]

template<class Protocol >

int join::BasicStreamSocket< Protocol >::readExactly	(	char *	data,
		size_t	size,
		TimePoint	deadline )

inlinenoexcept

read data until size is reached, an error occurred or the deadline expired.

Parameters

data	buffer used to store the data received.
size	number of bytes to read.
deadline	time point at which to give up, max to wait indefinitely.

Returns: 0 on success, -1 on failure.

◆ remoteEndpoint()

template<class Protocol >

const Endpoint & join::BasicStreamSocket< Protocol >::remoteEndpoint ( ) const

inlinenoexcept

determine the remote endpoint associated with this socket.

Returns: remote endpoint.

◆ setOption()

template<class Protocol >

int join::BasicStreamSocket< Protocol >::setOption	(	Option	option,
		int	value )

inlineoverridevirtualnoexcept

set the given option to the given value.

Parameters

option	socket option.
value	option value.

Returns: 0 on success, -1 on failure.

Reimplemented from join::BasicRawSocket< Protocol >.

◆ waitConnected() [1/3]

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::waitConnected ( )

inline

block until connected.

Returns: true if connected, false otherwise.

◆ waitConnected() [2/3]

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::waitConnected ( std::chrono::nanoseconds timeout )

inline

block until connected, giving up after the given duration.

Parameters

timeout maximum time to wait.

Returns: true if connected, false otherwise.

◆ waitConnected() [3/3]

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::waitConnected ( TimePoint deadline )

inline

block until connected, giving up at the given time point.

Parameters

deadline time point at which to give up, max to wait indefinitely.

Returns: true if connected, false otherwise.

◆ waitDisconnected() [1/3]

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::waitDisconnected ( )

inline

wait until the connection as been shut down. return true if the connection as been shut down, false otherwise.

◆ waitDisconnected() [2/3]

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::waitDisconnected ( std::chrono::nanoseconds timeout )

inline

wait until the connection as been shut down, giving up after the given duration.

Parameters

timeout maximum time to wait. return true if the connection as been shut down, false otherwise.

◆ waitDisconnected() [3/3]

template<class Protocol >

bool join::BasicStreamSocket< Protocol >::waitDisconnected ( TimePoint deadline )

inline

wait until the connection as been shut down, giving up at the given time point.

Parameters

deadline time point at which to give up, max to wait indefinitely. return true if the connection as been shut down, false otherwise.

◆ writeExactly() [1/3]

template<class Protocol >

int join::BasicStreamSocket< Protocol >::writeExactly	(	const char *	data,
		size_t	size )

inlinenoexcept

write data until size is reached or an error occurred.

Parameters

data	data buffer to send.
size	number of bytes to write.

Returns: 0 on success, -1 on failure.

◆ writeExactly() [2/3]

template<class Protocol >

int join::BasicStreamSocket< Protocol >::writeExactly	(	const char *	data,
		size_t	size,
		std::chrono::nanoseconds	timeout )

inlinenoexcept

write data until size is reached, an error occurred or the given duration elapsed.

Parameters

data	data buffer to send.
size	number of bytes to write.
timeout	maximum time granted to the whole write.

Returns: 0 on success, -1 on failure.

◆ writeExactly() [3/3]

template<class Protocol >

int join::BasicStreamSocket< Protocol >::writeExactly	(	const char *	data,
		size_t	size,
		TimePoint	deadline )

inlinenoexcept

write data until size is reached, an error occurred or the deadline expired.

Parameters

data	data buffer to send.
size	number of bytes to write.
deadline	time point at which to give up, max to wait indefinitely.

Returns: 0 on success, -1 on failure.

Friends And Related Symbol Documentation

◆ BasicAsyncStreamSocket

template<class Protocol >

template<class P , class E , size_t N>

friend class BasicAsyncStreamSocket

friend

friendship with basic asynchronous stream socket

Member Data Documentation

◆ _remote

template<class Protocol >

Endpoint join::BasicStreamSocket< Protocol >::_remote

mutableprotected

remote endpoint.

The documentation for this class was generated from the following files:

core/include/join/protocol.hpp
core/include/join/stream_socket.hpp

Public Types

Public Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Endpoint

◆ Mode

◆ Option

◆ Ptr

◆ State

◆ TimePoint

Constructor & Destructor Documentation

◆ BasicStreamSocket() [1/5]

◆ BasicStreamSocket() [2/5]

◆ BasicStreamSocket() [3/5]

◆ BasicStreamSocket() [4/5]

◆ BasicStreamSocket() [5/5]

◆ ~BasicStreamSocket()

Member Function Documentation

◆ close()

◆ connect()

◆ connected()

◆ connecting()

◆ disconnect()

◆ mtu()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ read()

◆ readExactly() [1/3]

◆ readExactly() [2/3]

◆ readExactly() [3/3]

◆ remoteEndpoint()

◆ setOption()

◆ waitConnected() [1/3]

◆ waitConnected() [2/3]

◆ waitConnected() [3/3]

◆ waitDisconnected() [1/3]

◆ waitDisconnected() [2/3]

◆ waitDisconnected() [3/3]

◆ writeExactly() [1/3]

◆ writeExactly() [2/3]

◆ writeExactly() [3/3]

Friends And Related Symbol Documentation

◆ BasicAsyncStreamSocket

Member Data Documentation

◆ _remote
