basic socket class. More...

#include <socket.hpp>

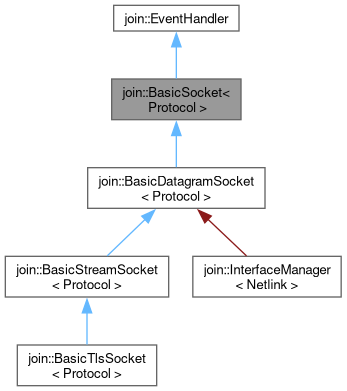

Inheritance diagram for join::BasicSocket< Protocol >:

[legend]

Collaboration diagram for join::BasicSocket< Protocol >:

Public Types
enum	Mode { Blocking , NonBlocking }
	socket modes. More...

enum	Option { NoDelay , KeepAlive , KeepIdle , KeepIntvl , KeepCount , SndBuffer , RcvBuffer , TimeStamp , ReuseAddr , ReusePort , Broadcast , Ttl , MulticastLoop , MulticastTtl , PathMtuDiscover , RcvError , AuxData }
	socket options. More...

enum	State { Connecting , Connected , Disconnecting , Disconnected , Closed }
	socket states. More...

using	Ptr = std::unique_ptr <BasicSocket <Protocol>>

using	Endpoint = typename Protocol::Endpoint

Public Member Functions
	BasicSocket ()
	default constructor.

	BasicSocket (Mode mode)
	create socket instance specifying the mode.

	BasicSocket (const BasicSocket &other)=delete
	copy constructor.

BasicSocket &	operator= (const BasicSocket &other)=delete
	copy assignment operator.

	BasicSocket (BasicSocket &&other)
	move constructor.

BasicSocket &	operator= (BasicSocket &&other)
	move assignment operator.

virtual	~BasicSocket ()
	destroy the socket instance.

virtual int	open (const Protocol &protocol=Protocol()) noexcept
	open socket using the given protocol.

virtual void	close () noexcept
	close the socket.

virtual int	bind (const Endpoint &endpoint) noexcept
	assigns the specified endpoint to the socket.

virtual int	canRead () const noexcept
	get the number of readable bytes.

virtual bool	waitReadyRead (int timeout=0) const noexcept
	block until new data is available for reading.

virtual int	read (char *data, unsigned long maxSize) noexcept
	read data.

virtual bool	waitReadyWrite (int timeout=0) const noexcept
	block until at least one byte can be written.

virtual int	write (const char *data, unsigned long maxSize) noexcept
	write data.

void	setMode (Mode mode) noexcept
	set the socket to the non-blocking or blocking mode.

virtual int	setOption (Option option, int value) noexcept
	set the given option to the given value.

Endpoint	localEndpoint () const
	determine the local endpoint associated with this socket.

bool	opened () const noexcept
	check if the socket is opened.

virtual bool	encrypted () const noexcept
	check if the socket is secure.

int	family () const noexcept
	get socket address family.

int	type () const noexcept
	get the protocol communication semantic.

int	protocol () const noexcept
	get socket protocol.

int	handle () const noexcept override
	get socket native handle.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

virtual	~EventHandler ()=default
	destroy instance.

Static Public Member Functions
static uint16_t	checksum (const uint16_t *data, size_t len, uint16_t current=0)
	get standard 1s complement checksum.

Protected Member Functions
int	wait (bool wantRead, bool wantWrite, int timeout) const noexcept
	wait for the socket handle to become ready.

Protected Member Functions inherited from join::EventHandler
virtual void	onReceive ()
	method called when data are ready to be read on handle.

virtual void	onClose ()
	method called when handle is closed.

virtual void	onError ()
	method called when an error occured on handle.

Protected Attributes
State	_state = State::Closed
	socket state.

Mode	_mode = Mode::NonBlocking
	socket mode.

int	_handle = -1
	socket handle.

Protocol	_protocol
	protocol.

Detailed Description

template<class Protocol>
class join::BasicSocket< Protocol >

basic socket class.

Member Typedef Documentation

◆ Endpoint

template<class Protocol >

using join::BasicSocket< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Ptr

template<class Protocol >

using join::BasicSocket< Protocol >::Ptr = std::unique_ptr <BasicSocket <Protocol>>

Member Enumeration Documentation

◆ Mode

template<class Protocol >

enum join::BasicSocket::Mode

socket modes.

Enumerator
Blocking	the socket will block
NonBlocking	the socket will not block

◆ Option

template<class Protocol >

enum join::BasicSocket::Option

socket options.

Enumerator
NoDelay	set the TCP_NODELAY option to disable/enable the nagle's algorithm.
KeepAlive	set the SO_KEEPALIVE option.
KeepIdle	set the keepalive idle timeout option.
KeepIntvl	set the keepalive probe interval option.
KeepCount	set the keepalive probe count option.
SndBuffer	set the socket send buffer size at the OS level.
RcvBuffer	set the socket receive buffer size at the OS level.
TimeStamp	enable or disable the receiving of the SO_TIMESTAMP control message.
ReuseAddr	allow reuse of local addresses.
ReusePort	permits multiple sockets to be bound to an identical socket address.
Broadcast	allow datagram sockets to send packets to a broadcast address.
Ttl	set the time-to-live value of outgoing packets.
MulticastLoop	determines whether multicast packets should be looped back to the local sockets.
MulticastTtl	set the time-to-live value of outgoing multicast packets.
PathMtuDiscover	set the Path MTU Discovery setting for a socket.
RcvError	enable extended reliable error message passing.
AuxData	enable extended metadata message passing.

◆ State

template<class Protocol >

enum join::BasicSocket::State

socket states.

Enumerator
Connecting	socket is connecting.
Connected	socket is connected.
Disconnecting	socket is disconnecting.
Disconnected	socket is disconnected.
Closed	socket is closed.

Constructor & Destructor Documentation

◆ BasicSocket() [1/4]

template<class Protocol >

join::BasicSocket< Protocol >::BasicSocket ( )

inline

default constructor.

◆ BasicSocket() [2/4]

template<class Protocol >

join::BasicSocket< Protocol >::BasicSocket ( Mode mode )

inline

create socket instance specifying the mode.

Parameters

mode	blocking mode.

◆ BasicSocket() [3/4]

template<class Protocol >

join::BasicSocket< Protocol >::BasicSocket ( const BasicSocket< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicSocket() [4/4]

template<class Protocol >

join::BasicSocket< Protocol >::BasicSocket ( BasicSocket< Protocol > && other )

inline

move constructor.

Parameters

other other object to move.

◆ ~BasicSocket()

template<class Protocol >

virtual join::BasicSocket< Protocol >::~BasicSocket ( )

inlinevirtual

destroy the socket instance.

Member Function Documentation

◆ bind()

template<class Protocol >

virtual int join::BasicSocket< Protocol >::bind ( const Endpoint & endpoint )

inlinevirtualnoexcept

assigns the specified endpoint to the socket.

Parameters

endpoint endpoint to assign to the socket.

Returns: 0 on success, -1 on failure.

◆ canRead()

template<class Protocol >

virtual int join::BasicSocket< Protocol >::canRead ( ) const

inlinevirtualnoexcept

get the number of readable bytes.

Returns: the number of readable bytes, -1 on failure.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ checksum()

template<class Protocol >

static uint16_t join::BasicSocket< Protocol >::checksum	(	const uint16_t *	data,
		size_t	len,
		uint16_t	current = 0 )

inlinestatic

get standard 1s complement checksum.

Parameters

data	data pointer.
len	data len.
current	Current sum.

Returns: checksum.

◆ close()

template<class Protocol >

virtual void join::BasicSocket< Protocol >::close ( )

inlinevirtualnoexcept

close the socket.

Reimplemented in join::BasicDatagramSocket< Protocol >, and join::BasicTlsSocket< Protocol >.

◆ encrypted()

template<class Protocol >

virtual bool join::BasicSocket< Protocol >::encrypted ( ) const

inlinevirtualnoexcept

check if the socket is secure.

Returns: true if encrypted, false otherwise.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ family()

template<class Protocol >

int join::BasicSocket< Protocol >::family ( ) const

inlinenoexcept

get socket address family.

Returns: socket address family.

◆ handle()

template<class Protocol >

int join::BasicSocket< Protocol >::handle ( ) const

inlineoverridevirtualnoexcept

get socket native handle.

Returns: socket native handle.

Implements join::EventHandler.

◆ localEndpoint()

template<class Protocol >

Endpoint join::BasicSocket< Protocol >::localEndpoint ( ) const

inline

determine the local endpoint associated with this socket.

Returns: local endpoint.

◆ open()

template<class Protocol >

virtual int join::BasicSocket< Protocol >::open ( const Protocol & protocol = Protocol () )

inlinevirtualnoexcept

open socket using the given protocol.

Parameters

protocol protocol to use.

Returns: 0 on success, -1 on failure.

Reimplemented in join::BasicDatagramSocket< Protocol >.

◆ opened()

template<class Protocol >

bool join::BasicSocket< Protocol >::opened ( ) const

inlinenoexcept

check if the socket is opened.

Returns: true if opened, false otherwise.

◆ operator=() [1/2]

template<class Protocol >

BasicSocket & join::BasicSocket< Protocol >::operator= ( BasicSocket< Protocol > && other )

inline

move assignment operator.

Parameters

other other object to assign.

Returns: current object.

◆ operator=() [2/2]

template<class Protocol >

BasicSocket & join::BasicSocket< Protocol >::operator= ( const BasicSocket< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to assign.

Returns: current object.

◆ protocol()

template<class Protocol >

int join::BasicSocket< Protocol >::protocol ( ) const

inlinenoexcept

get socket protocol.

Returns: socket protocol.

◆ read()

template<class Protocol >

virtual int join::BasicSocket< Protocol >::read	(	char *	data,
		unsigned long	maxSize )

inlinevirtualnoexcept

read data.

Parameters

data	buffer used to store the data received.
maxSize	maximum number of bytes to read.

Returns: the number of bytes received, -1 on failure.

Reimplemented in join::BasicDatagramSocket< Protocol >, and join::BasicTlsSocket< Protocol >.

◆ setMode()

template<class Protocol >

void join::BasicSocket< Protocol >::setMode ( Mode mode )

inlinenoexcept

set the socket to the non-blocking or blocking mode.

Parameters

mode	blocking mode.

◆ setOption()

template<class Protocol >

virtual int join::BasicSocket< Protocol >::setOption	(	Option	option,
		int	value )

inlinevirtualnoexcept

set the given option to the given value.

Parameters

option	socket option.
value	option value.

Returns: 0 on success, -1 on failure.

Reimplemented in join::BasicDatagramSocket< Protocol >, and join::BasicStreamSocket< Protocol >.

◆ type()

template<class Protocol >

int join::BasicSocket< Protocol >::type ( ) const

inlinenoexcept

get the protocol communication semantic.

Returns: the protocol communication semantic.

◆ wait()

template<class Protocol >

int join::BasicSocket< Protocol >::wait	(	bool	wantRead,
		bool	wantWrite,
		int	timeout ) const

inlineprotectednoexcept

wait for the socket handle to become ready.

Parameters

wantRead	set to true if want read
wantWrite	set to true if want write.
timeout	timeout in milliseconds.

Returns: 0 on success, -1 on failure.

◆ waitReadyRead()

template<class Protocol >

virtual bool join::BasicSocket< Protocol >::waitReadyRead ( int timeout = 0 ) const

inlinevirtualnoexcept

block until new data is available for reading.

Parameters

timeout timeout in milliseconds.

Returns: true if there is new data available for reading, false otherwise.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ waitReadyWrite()

template<class Protocol >

virtual bool join::BasicSocket< Protocol >::waitReadyWrite ( int timeout = 0 ) const

inlinevirtualnoexcept

block until at least one byte can be written.

Parameters

timeout timeout in milliseconds.

Returns: true if data can be written, false otherwise.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ write()

template<class Protocol >

virtual int join::BasicSocket< Protocol >::write	(	const char *	data,
		unsigned long	maxSize )

inlinevirtualnoexcept

write data.

Parameters

data	data buffer to send.
maxSize	maximum number of bytes to write.

Returns: the number of bytes written, -1 on failure.

Reimplemented in join::BasicDatagramSocket< Protocol >, and join::BasicTlsSocket< Protocol >.

Member Data Documentation

◆ _handle

template<class Protocol >

int join::BasicSocket< Protocol >::_handle = -1

protected

socket handle.

◆ _mode

template<class Protocol >

Mode join::BasicSocket< Protocol >::_mode = Mode::NonBlocking

protected

socket mode.

◆ _protocol

template<class Protocol >

Protocol join::BasicSocket< Protocol >::_protocol

protected

protocol.

◆ _state

template<class Protocol >

State join::BasicSocket< Protocol >::_state = State::Closed

protected

socket state.

The documentation for this class was generated from the following files:

core/include/join/protocol.hpp
core/include/join/socket.hpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Endpoint

◆ Ptr

Member Enumeration Documentation

◆ Mode

◆ Option

◆ State

Constructor & Destructor Documentation

◆ BasicSocket() [1/4]

◆ BasicSocket() [2/4]

◆ BasicSocket() [3/4]

◆ BasicSocket() [4/4]

◆ ~BasicSocket()

Member Function Documentation

◆ bind()

◆ canRead()

◆ checksum()

◆ close()

◆ encrypted()

◆ family()

◆ handle()

◆ localEndpoint()

◆ open()

◆ opened()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ protocol()

◆ read()

◆ setMode()

◆ setOption()

◆ type()

◆ wait()

◆ waitReadyRead()

◆ waitReadyWrite()

◆ write()

Member Data Documentation

◆ _handle

◆ _mode

◆ _protocol

◆ _state
