basic datagram socket class. More...

#include <socket.hpp>

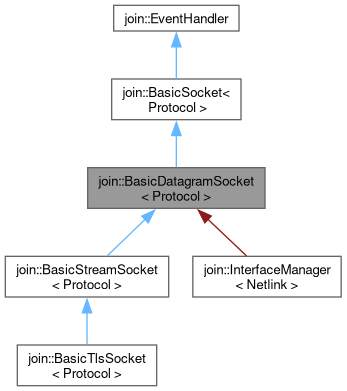

Inheritance diagram for join::BasicDatagramSocket< Protocol >:

[legend]

Collaboration diagram for join::BasicDatagramSocket< Protocol >:

[legend]

Public Types
using	Ptr = std::unique_ptr <BasicDatagramSocket <Protocol>>

using	Mode = typename BasicSocket <Protocol>::Mode

using	Option = typename BasicSocket <Protocol>::Option

using	State = typename BasicSocket <Protocol>::State

using	Endpoint = typename Protocol::Endpoint

Public Types inherited from join::BasicSocket< Protocol >
enum	Mode { Blocking , NonBlocking }
	socket modes. More...

enum	Option { NoDelay , KeepAlive , KeepIdle , KeepIntvl , KeepCount , SndBuffer , RcvBuffer , TimeStamp , ReuseAddr , ReusePort , Broadcast , Ttl , MulticastLoop , MulticastTtl , PathMtuDiscover , RcvError , AuxData }
	socket options. More...

enum	State { Connecting , Connected , Disconnecting , Disconnected , Closed }
	socket states. More...

using	Ptr = std::unique_ptr <BasicSocket <Protocol>>

using	Endpoint = typename Protocol::Endpoint

Public Member Functions
	BasicDatagramSocket (int ttl=60)
	Default constructor.

	BasicDatagramSocket (Mode mode, int ttl=60)
	Create instance specifying the mode.

	BasicDatagramSocket (const BasicDatagramSocket &other)=delete
	Copy constructor.

BasicDatagramSocket &	operator= (const BasicDatagramSocket &other)=delete
	Copy assignment operator.

	BasicDatagramSocket (BasicDatagramSocket &&other)
	Move constructor.

BasicDatagramSocket &	operator= (BasicDatagramSocket &&other)
	Move assignment operator.

virtual	~BasicDatagramSocket ()=default
	Destroy the instance.

virtual int	open (const Protocol &protocol=Protocol()) noexcept override
	open socket using the given protocol.

virtual int	bindToDevice (const std::string &device) noexcept
	assigns the specified device to the socket.

virtual int	connect (const Endpoint &endpoint)
	make a connection to the given endpoint.

virtual int	disconnect ()
	shutdown the connection.

virtual void	close () noexcept override
	close the socket handle.

virtual int	read (char *data, unsigned long maxSize) noexcept override
	read data.

virtual int	readFrom (char data, unsigned long maxSize, Endpoint endpoint=nullptr) noexcept
	read data on the socket.

virtual int	write (const char *data, unsigned long maxSize) noexcept override
	write data.

virtual int	writeTo (const char *data, unsigned long maxSize, const Endpoint &endpoint) noexcept
	write data on the socket.

virtual int	setOption (Option option, int value) noexcept override
	set the given option to the given value.

const Endpoint &	remoteEndpoint () const
	determine the remote endpoint associated with this socket.

virtual bool	connected () noexcept
	check if the socket is connected.

int	mtu () const
	get socket mtu.

int	ttl () const
	returns the Time-To-Live value.

Public Member Functions inherited from join::BasicSocket< Protocol >
	BasicSocket ()
	default constructor.

	BasicSocket (Mode mode)
	create socket instance specifying the mode.

	BasicSocket (const BasicSocket &other)=delete
	copy constructor.

BasicSocket &	operator= (const BasicSocket &other)=delete
	copy assignment operator.

	BasicSocket (BasicSocket &&other)
	move constructor.

BasicSocket &	operator= (BasicSocket &&other)
	move assignment operator.

virtual	~BasicSocket ()
	destroy the socket instance.

virtual int	bind (const Endpoint &endpoint) noexcept
	assigns the specified endpoint to the socket.

virtual int	canRead () const noexcept
	get the number of readable bytes.

virtual bool	waitReadyRead (int timeout=0) const noexcept
	block until new data is available for reading.

virtual bool	waitReadyWrite (int timeout=0) const noexcept
	block until at least one byte can be written.

void	setMode (Mode mode) noexcept
	set the socket to the non-blocking or blocking mode.

Endpoint	localEndpoint () const
	determine the local endpoint associated with this socket.

bool	opened () const noexcept
	check if the socket is opened.

virtual bool	encrypted () const noexcept
	check if the socket is secure.

int	family () const noexcept
	get socket address family.

int	type () const noexcept
	get the protocol communication semantic.

int	protocol () const noexcept
	get socket protocol.

int	handle () const noexcept override
	get socket native handle.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

virtual	~EventHandler ()=default
	destroy instance.

Protected Attributes
Endpoint	_remote
	remote endpoint.

int	_ttl = 60
	packet time to live.

Protected Attributes inherited from join::BasicSocket< Protocol >
State	_state = State::Closed
	socket state.

Mode	_mode = Mode::NonBlocking
	socket mode.

int	_handle = -1
	socket handle.

Protocol	_protocol
	protocol.

Additional Inherited Members
Static Public Member Functions inherited from join::BasicSocket< Protocol >
static uint16_t	checksum (const uint16_t *data, size_t len, uint16_t current=0)
	get standard 1s complement checksum.

Protected Member Functions inherited from join::BasicSocket< Protocol >
int	wait (bool wantRead, bool wantWrite, int timeout) const noexcept
	wait for the socket handle to become ready.

Protected Member Functions inherited from join::EventHandler
virtual void	onReceive ()
	method called when data are ready to be read on handle.

virtual void	onClose ()
	method called when handle is closed.

virtual void	onError ()
	method called when an error occured on handle.

Detailed Description

template<class Protocol>
class join::BasicDatagramSocket< Protocol >

basic datagram socket class.

Member Typedef Documentation

◆ Endpoint

template<class Protocol >

using join::BasicDatagramSocket< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Mode

template<class Protocol >

using join::BasicDatagramSocket< Protocol >::Mode = typename BasicSocket <Protocol>::Mode

◆ Option

template<class Protocol >

using join::BasicDatagramSocket< Protocol >::Option = typename BasicSocket <Protocol>::Option

◆ Ptr

template<class Protocol >

using join::BasicDatagramSocket< Protocol >::Ptr = std::unique_ptr <BasicDatagramSocket <Protocol>>

◆ State

template<class Protocol >

using join::BasicDatagramSocket< Protocol >::State = typename BasicSocket <Protocol>::State

Constructor & Destructor Documentation

◆ BasicDatagramSocket() [1/4]

template<class Protocol >

join::BasicDatagramSocket< Protocol >::BasicDatagramSocket ( int ttl = 60 )

inline

Default constructor.

◆ BasicDatagramSocket() [2/4]

template<class Protocol >

join::BasicDatagramSocket< Protocol >::BasicDatagramSocket	(	Mode	mode,
		int	ttl = 60 )

inline

Create instance specifying the mode.

Parameters

mode	Set the socket blocking mode.

◆ BasicDatagramSocket() [3/4]

template<class Protocol >

join::BasicDatagramSocket< Protocol >::BasicDatagramSocket ( const BasicDatagramSocket< Protocol > & other )

delete

Copy constructor.

Parameters

other Other object to copy.

◆ BasicDatagramSocket() [4/4]

template<class Protocol >

join::BasicDatagramSocket< Protocol >::BasicDatagramSocket ( BasicDatagramSocket< Protocol > && other )

inline

Move constructor.

Parameters

other Other object to move.

◆ ~BasicDatagramSocket()

template<class Protocol >

virtual join::BasicDatagramSocket< Protocol >::~BasicDatagramSocket ( )

virtualdefault

Destroy the instance.

Member Function Documentation

◆ bindToDevice()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::bindToDevice ( const std::string & device )

inlinevirtualnoexcept

assigns the specified device to the socket.

Parameters

device device name.

Returns: 0 on success, -1 on failure.

◆ close()

template<class Protocol >

virtual void join::BasicDatagramSocket< Protocol >::close ( )

inlineoverridevirtualnoexcept

close the socket handle.

Reimplemented from join::BasicSocket< Protocol >.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ connect()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::connect ( const Endpoint & endpoint )

inlinevirtual

make a connection to the given endpoint.

Parameters

endpoint endpoint to connect to.

Returns: 0 on success, -1 on failure.

◆ connected()

template<class Protocol >

virtual bool join::BasicDatagramSocket< Protocol >::connected ( )

inlinevirtualnoexcept

check if the socket is connected.

Returns: true if connected, false otherwise.

Reimplemented in join::BasicStreamSocket< Protocol >.

◆ disconnect()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::disconnect ( )

inlinevirtual

shutdown the connection.

Returns: 0 on success, -1 on failure.

Reimplemented in join::BasicStreamSocket< Protocol >, and join::BasicTlsSocket< Protocol >.

◆ mtu()

template<class Protocol >

int join::BasicDatagramSocket< Protocol >::mtu ( ) const

inline

get socket mtu.

Returns: mtu on success, -1 on failure.

◆ open()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::open ( const Protocol & protocol = Protocol () )

inlineoverridevirtualnoexcept

open socket using the given protocol.

Parameters

protocol protocol to use.

Returns: 0 on success, -1 on failure.

Reimplemented from join::BasicSocket< Protocol >.

◆ operator=() [1/2]

template<class Protocol >

BasicDatagramSocket & join::BasicDatagramSocket< Protocol >::operator= ( BasicDatagramSocket< Protocol > && other )

inline

Move assignment operator.

Parameters

other other object to assign.

Returns: assigned object.

◆ operator=() [2/2]

template<class Protocol >

BasicDatagramSocket & join::BasicDatagramSocket< Protocol >::operator= ( const BasicDatagramSocket< Protocol > & other )

delete

Copy assignment operator.

Parameters

other other object to assign.

Returns: assigned object.

◆ read()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::read	(	char *	data,
		unsigned long	maxSize )

inlineoverridevirtualnoexcept

read data.

Parameters

data	buffer used to store the data received.
maxSize	maximum number of bytes to read.

Returns: the number of bytes received, -1 on failure.

Reimplemented from join::BasicSocket< Protocol >.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ readFrom()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::readFrom	(	char *	data,
		unsigned long	maxSize,
		Endpoint *	endpoint = nullptr )

inlinevirtualnoexcept

read data on the socket.

Parameters

data	buffer used to store the data received.
maxSize	maximum number of bytes to read.
endpoint	endpoint from where data are coming (optional).

Returns: The number of bytes received, -1 on failure.

◆ remoteEndpoint()

template<class Protocol >

const Endpoint & join::BasicDatagramSocket< Protocol >::remoteEndpoint ( ) const

inline

determine the remote endpoint associated with this socket.

Returns: remote endpoint.

◆ setOption()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::setOption	(	Option	option,
		int	value )

inlineoverridevirtualnoexcept

set the given option to the given value.

Parameters

option	socket option.
value	option value.

Returns: 0 on success, -1 on failure.

Reimplemented from join::BasicSocket< Protocol >.

Reimplemented in join::BasicStreamSocket< Protocol >.

◆ ttl()

template<class Protocol >

int join::BasicDatagramSocket< Protocol >::ttl ( ) const

inline

returns the Time-To-Live value.

Returns: The Time-To-Live value.

◆ write()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::write	(	const char *	data,
		unsigned long	maxSize )

inlineoverridevirtualnoexcept

write data.

Parameters

data	data buffer to send.
maxSize	maximum number of bytes to write.

Returns: the number of bytes written, -1 on failure.

Reimplemented from join::BasicSocket< Protocol >.

Reimplemented in join::BasicTlsSocket< Protocol >.

◆ writeTo()

template<class Protocol >

virtual int join::BasicDatagramSocket< Protocol >::writeTo	(	const char *	data,
		unsigned long	maxSize,
		const Endpoint &	endpoint )

inlinevirtualnoexcept

write data on the socket.

Parameters

data	data buffer to send.
maxSize	maximum number of bytes to write.
endpoint	endpoint where to write the data.

Returns: the number of bytes written, -1 on failure.

Member Data Documentation

◆ _remote

template<class Protocol >

Endpoint join::BasicDatagramSocket< Protocol >::_remote

protected

remote endpoint.

◆ _ttl

template<class Protocol >

int join::BasicDatagramSocket< Protocol >::_ttl = 60

protected

packet time to live.

The documentation for this class was generated from the following files:

core/include/join/protocol.hpp
core/include/join/socket.hpp

Public Types

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Endpoint

◆ Mode

◆ Option

◆ Ptr

◆ State

Constructor & Destructor Documentation

◆ BasicDatagramSocket() [1/4]

◆ BasicDatagramSocket() [2/4]

◆ BasicDatagramSocket() [3/4]

◆ BasicDatagramSocket() [4/4]

◆ ~BasicDatagramSocket()

Member Function Documentation

◆ bindToDevice()

◆ close()

◆ connect()

◆ connected()

◆ disconnect()

◆ mtu()

◆ open()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ read()

◆ readFrom()

◆ remoteEndpoint()

◆ setOption()

◆ ttl()

◆ write()

◆ writeTo()

Member Data Documentation

◆ _remote

◆ _ttl
