basic raw socket class. More...

#include <raw_socket.hpp>

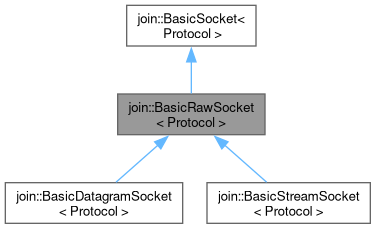

Inheritance diagram for join::BasicRawSocket< Protocol >:

[legend]

Collaboration diagram for join::BasicRawSocket< Protocol >:

Public Types
enum	Option { NoDelay , KeepAlive , KeepIdle , KeepIntvl , KeepCount , SndBuffer , RcvBuffer , TimeStamp , ReuseAddr , ReusePort , Broadcast , Ttl , MulticastLoop , MulticastTtl , PathMtuDiscover , RcvError , AuxData }
	socket options. More...

using	Ptr = std::unique_ptr<BasicRawSocket<Protocol>>

using	Mode = typename BasicSocket<Protocol>::Mode

using	State = typename BasicSocket<Protocol>::State

using	Endpoint = typename Protocol::Endpoint

Public Types inherited from join::BasicSocket< Protocol >
enum	Mode { Blocking , NonBlocking }
	socket modes. More...

enum	State { Connecting , Connected , Disconnecting , Disconnected , Closed }
	socket states. More...

using	Ptr = std::unique_ptr<BasicSocket<Protocol>>

using	Endpoint = typename Protocol::Endpoint

using	TimePoint = std::chrono::steady_clock::time_point

Public Member Functions
	BasicRawSocket () noexcept
	default constructor.

	BasicRawSocket (Mode mode) noexcept
	create socket instance specifying the mode.

	BasicRawSocket (const BasicRawSocket &other)=delete
	copy constructor.

BasicRawSocket &	operator= (const BasicRawSocket &other)=delete
	copy assignment operator.

	BasicRawSocket (BasicRawSocket &&other) noexcept=default
	move constructor.

BasicRawSocket &	operator= (BasicRawSocket &&other) noexcept=default
	move assignment operator.

virtual	~BasicRawSocket ()=default
	destroy the socket instance.

int	bind (const Endpoint &endpoint) noexcept override
	assigns the specified endpoint to the socket.

int	bindToDevice (const std::string &device) noexcept
	assigns the specified device to the socket.

ssize_t	canRead () const noexcept
	get the number of readable bytes.

ssize_t	read (char *data, size_t maxSize) noexcept
	read data.

ssize_t	write (const char *data, size_t maxSize) noexcept
	write data.

virtual int	setOption (Option option, int value) noexcept
	set the given option to the given value.

Public Member Functions inherited from join::BasicSocket< Protocol >
	BasicSocket () noexcept
	default constructor.

	BasicSocket (Mode mode) noexcept
	create socket instance specifying the mode.

	BasicSocket (const BasicSocket &other)=delete
	copy constructor.

BasicSocket &	operator= (const BasicSocket &other)=delete
	copy assignment operator.

	BasicSocket (BasicSocket &&other) noexcept
	move constructor.

BasicSocket &	operator= (BasicSocket &&other) noexcept
	move assignment operator.

virtual	~BasicSocket ()
	destroy the socket instance.

virtual int	open (const Protocol &protocol=Protocol()) noexcept
	open socket using the given protocol.

virtual void	close () noexcept
	close the socket.

bool	waitReadyRead () const noexcept
	block until new data is available for reading.

bool	waitReadyRead (std::chrono::nanoseconds timeout) const noexcept
	block until new data is available for reading, giving up after the given duration.

bool	waitReadyRead (TimePoint deadline) const noexcept
	block until new data is available for reading, giving up at the given time point.

bool	waitReadyWrite () const noexcept
	block until at least one byte can be written.

bool	waitReadyWrite (std::chrono::nanoseconds timeout) const noexcept
	block until at least one byte can be written, giving up after the given duration.

bool	waitReadyWrite (TimePoint deadline) const noexcept
	block until at least one byte can be written, giving up at the given time point.

void	setMode (Mode mode) noexcept
	set the socket to the non-blocking or blocking mode.

Endpoint	localEndpoint () const noexcept
	determine the local endpoint associated with this socket.

bool	opened () const noexcept
	check if the socket is opened.

int	family () const noexcept
	get socket address family.

int	type () const noexcept
	get the protocol communication semantic.

int	protocol () const noexcept
	get socket protocol.

Mode	mode () const noexcept
	get the blocking mode of the socket.

int	handle () const noexcept
	get socket native handle.

int	wait (bool wantRead, bool wantWrite) const noexcept
	wait for the socket handle to become ready.

int	waitFor (bool wantRead, bool wantWrite, std::chrono::nanoseconds timeout) const noexcept
	wait for the socket handle to become ready, giving up after the given duration.

int	waitUntil (bool wantRead, bool wantWrite, TimePoint deadline) const noexcept
	wait for the socket handle to become ready, giving up at the given time point.

Additional Inherited Members
Protected Attributes inherited from join::BasicSocket< Protocol >
State	_state = State::Closed
	socket state.

Mode	_mode = Mode::NonBlocking
	socket mode.

int	_handle = -1
	socket handle.

Protocol	_protocol
	protocol.

Detailed Description

template<class Protocol>
class join::BasicRawSocket< Protocol >

basic raw socket class.

Member Typedef Documentation

◆ Endpoint

template<class Protocol >

using join::BasicRawSocket< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Mode

template<class Protocol >

using join::BasicRawSocket< Protocol >::Mode = typename BasicSocket<Protocol>::Mode

◆ Ptr

template<class Protocol >

using join::BasicRawSocket< Protocol >::Ptr = std::unique_ptr<BasicRawSocket<Protocol>>

◆ State

template<class Protocol >

using join::BasicRawSocket< Protocol >::State = typename BasicSocket<Protocol>::State

Member Enumeration Documentation

◆ Option

template<class Protocol >

enum join::BasicRawSocket::Option

socket options.

Enumerator
NoDelay	set the TCP_NODELAY option to disable/enable the nagle's algorithm.
KeepAlive	set the SO_KEEPALIVE option.
KeepIdle	set the keepalive idle timeout option.
KeepIntvl	set the keepalive probe interval option.
KeepCount	set the keepalive probe count option.
SndBuffer	set the socket send buffer size at the OS level.
RcvBuffer	set the socket receive buffer size at the OS level.
TimeStamp	enable or disable the receiving of the SO_TIMESTAMP control message.
ReuseAddr	allow reuse of local addresses.
ReusePort	permits multiple sockets to be bound to an identical socket address.
Broadcast	allow datagram sockets to send packets to a broadcast address.
Ttl	set the time-to-live value of outgoing packets.
MulticastLoop	determines whether multicast packets should be looped back to the local sockets.
MulticastTtl	set the time-to-live value of outgoing multicast packets.
PathMtuDiscover	set the Path MTU Discovery setting for a socket.
RcvError	enable extended reliable error message passing.
AuxData	enable extended metadata message passing.

Constructor & Destructor Documentation

◆ BasicRawSocket() [1/4]

template<class Protocol >

join::BasicRawSocket< Protocol >::BasicRawSocket ( )

inlinenoexcept

default constructor.

◆ BasicRawSocket() [2/4]

template<class Protocol >

join::BasicRawSocket< Protocol >::BasicRawSocket ( Mode mode )

inlineexplicitnoexcept

create socket instance specifying the mode.

Parameters

mode	blocking mode.

◆ BasicRawSocket() [3/4]

template<class Protocol >

join::BasicRawSocket< Protocol >::BasicRawSocket ( const BasicRawSocket< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicRawSocket() [4/4]

template<class Protocol >

join::BasicRawSocket< Protocol >::BasicRawSocket ( BasicRawSocket< Protocol > && other )

defaultnoexcept

move constructor.

Parameters

other other object to move.

◆ ~BasicRawSocket()

template<class Protocol >

virtual join::BasicRawSocket< Protocol >::~BasicRawSocket ( )

virtualdefault

destroy the socket instance.

Member Function Documentation

◆ bind()

template<class Protocol >

int join::BasicRawSocket< Protocol >::bind ( const Endpoint & endpoint )

inlineoverridevirtualnoexcept

assigns the specified endpoint to the socket.

Parameters

endpoint endpoint to assign to the socket.

Returns: 0 on success, -1 on failure.

Reimplemented from join::BasicSocket< Protocol >.

◆ bindToDevice()

template<class Protocol >

int join::BasicRawSocket< Protocol >::bindToDevice ( const std::string & device )

inlinenoexcept

assigns the specified device to the socket.

Parameters

device device name.

Returns: 0 on success, -1 on failure.

◆ canRead()

template<class Protocol >

ssize_t join::BasicRawSocket< Protocol >::canRead ( ) const

inlinenoexcept

get the number of readable bytes.

Returns: the number of readable bytes, -1 on failure.

◆ operator=() [1/2]

template<class Protocol >

BasicRawSocket & join::BasicRawSocket< Protocol >::operator= ( BasicRawSocket< Protocol > && other )

defaultnoexcept

move assignment operator.

Parameters

other other object to assign.

Returns: current object.

◆ operator=() [2/2]

template<class Protocol >

BasicRawSocket & join::BasicRawSocket< Protocol >::operator= ( const BasicRawSocket< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to assign.

Returns: current object.

◆ read()

template<class Protocol >

ssize_t join::BasicRawSocket< Protocol >::read	(	char *	data,
		size_t	maxSize )

inlinenoexcept

read data.

Parameters

data	buffer used to store the data received.
maxSize	maximum number of bytes to read.

Returns: the number of bytes received, -1 on failure.

◆ setOption()

template<class Protocol >

virtual int join::BasicRawSocket< Protocol >::setOption	(	Option	option,
		int	value )

inlinevirtualnoexcept

set the given option to the given value.

Parameters

option	socket option.
value	option value.

Returns: 0 on success, -1 on failure.

Reimplemented in join::BasicStreamSocket< Protocol >.

◆ write()

template<class Protocol >

ssize_t join::BasicRawSocket< Protocol >::write	(	const char *	data,
		size_t	maxSize )

inlinenoexcept

write data.

Parameters

data	data buffer to send.
maxSize	maximum number of bytes to write.

Returns: the number of bytes written, -1 on failure.

The documentation for this class was generated from the following files:

core/include/join/protocol.hpp
core/include/join/raw_socket.hpp
