DHCP server. More...

#include <dhcp.hpp>

Inheritance diagram for join::BasicDhcpServer< Protocol >:

[legend]

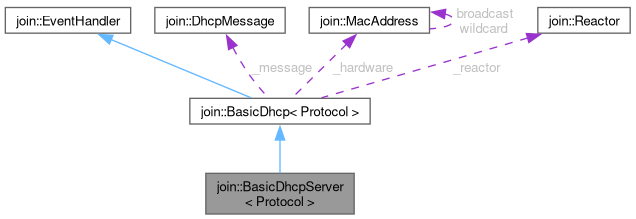

Collaboration diagram for join::BasicDhcpServer< Protocol >:

[legend]

Public Member Functions
	BasicDhcpServer ()=delete
	create the BasicDhcpServer instance.

	BasicDhcpServer (const std::string &interface, Reactor &reactor=ReactorThread::reactor())
	create the instance bound to the given interface.

virtual	~BasicDhcpServer ()=default
	destroy the instance.

int	offer (const DhcpPacket &request, const IpAddress &address, const DhcpOption &options={})
	answer a DISCOVER message with an OFFER.

int	ack (const DhcpPacket &request, const IpAddress &address, const DhcpOption &options={})
	answer a REQUEST message with an ACK.

int	nak (const DhcpPacket &request, const std::string &message={})
	refuse a REQUEST message with a NAK.

Public Member Functions inherited from join::BasicDhcp< Protocol >
	BasicDhcp ()=delete
	create the BasicDhcp instance.

	BasicDhcp (const std::string &interface, Reactor &reactor=ReactorThread::reactor())
	create the instance bound to the given interface.

	BasicDhcp (const BasicDhcp &other)=delete
	create instance by copy.

BasicDhcp &	operator= (const BasicDhcp &other)=delete
	assign instance by copy.

	BasicDhcp (BasicDhcp &&other)=delete
	create instance by move.

BasicDhcp &	operator= (BasicDhcp &&other)=delete
	assign instance by move.

virtual	~BasicDhcp ()
	destroy the instance.

const std::string &	interface () const noexcept
	get the name of the interface the instance is bound to.

const MacAddress &	hardware () const noexcept
	get the hardware address of the interface the instance is bound to.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

	EventHandler (const EventHandler &other)=default
	copy constructor.

EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.

	EventHandler (EventHandler &&other)=default
	move constructor.

EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.

virtual	~EventHandler ()=default
	destroy instance.

Protected Member Functions
virtual void	onDiscover (const DhcpPacket &request)=0
	method called when a DISCOVER message is received.

virtual void	onRequest (const DhcpPacket &request)=0
	method called when a REQUEST message is received.

virtual void	onRelease (const DhcpPacket &request)=0
	method called when a RELEASE message is received.

virtual void	onDecline (const DhcpPacket &request)=0
	method called when a DECLINE message is received.

virtual void	onInform (const DhcpPacket &request)=0
	method called when an INFORM message is received.

void	onMessage (DhcpPacket::Ptr packet) override final
	dispatch a received message to the handler for its type.

int	reply (const DhcpPacket &request, uint8_t type, const IpAddress &address, const DhcpOption &options)
	answer a message received from a client.

Protected Member Functions inherited from join::BasicDhcp< Protocol >
struct	__attribute__ ((packed)) Frame
	link, internet and transport headers a DHCP message is framed with.

struct	__attribute__ ((packed)) Pseudo
	header the UDP checksum is computed over, RFC 768.

void	onReadable (int fd) override final
	method called when data are ready to be read.

int	transmit (const DhcpPacket &packet, const IpAddress &source, const IpAddress &destination)
	frame a message and write it on the wire.

DhcpPacket::Ptr	receive (const char *data, size_t size) const
	decode a frame received on the wire.

Protected Member Functions inherited from join::EventHandler
virtual void	onEvent (int fd, uint32_t revents)
	method called when events are reported on handle.

virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.

virtual void	onClose (int fd)
	method called when handle was closed by the peer.

virtual void	onError (int fd)
	method called when an error occurred on handle.

Additional Inherited Members
Public Types inherited from join::BasicDhcp< Protocol >
using	Socket = typename Protocol::Socket

Static Protected Member Functions inherited from join::BasicDhcp< Protocol >
static uint16_t	udpChecksum (const Frame &frame, const char *payload, size_t size)
	compute the checksum of a UDP datagram, RFC 768.

Protected Attributes inherited from join::BasicDhcp< Protocol >
Socket	_socket
	underlying socket.

DhcpMessage	_message
	DHCP message codec.

std::unique_ptr< char[]>	_buffer
	receive buffer.

const std::string	_interface
	interface name.

const MacAddress	_hardware
	hardware address of the interface.

Reactor &	_reactor
	event loop reactor.

Detailed Description

template<class Protocol>
class join::BasicDhcpServer< Protocol >

DHCP server.

Constructor & Destructor Documentation

◆ BasicDhcpServer() [1/2]

template<class Protocol >

join::BasicDhcpServer< Protocol >::BasicDhcpServer ( )

delete

create the BasicDhcpServer instance.

◆ BasicDhcpServer() [2/2]

template<class Protocol >

join::BasicDhcpServer< Protocol >::BasicDhcpServer	(	const std::string &	interface,
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

create the instance bound to the given interface.

Parameters

interface	interface name.
reactor	reactor instance.

Exceptions

std::system_error if the interface is unknown or the socket could not be bound to it.

◆ ~BasicDhcpServer()

template<class Protocol >

virtual join::BasicDhcpServer< Protocol >::~BasicDhcpServer ( )

virtualdefault

destroy the instance.

Member Function Documentation

◆ ack()

template<class Protocol >

int join::BasicDhcpServer< Protocol >::ack	(	const DhcpPacket &	request,
		const IpAddress &	address,
		const DhcpOption &	options = {} )

inline

answer a REQUEST message with an ACK.

Parameters

request	message being answered.
address	address assigned to the client.
options	options to advertise, the message type and the server identifier are added.

Returns: 0 on success, -1 on failure.

◆ nak()

template<class Protocol >

int join::BasicDhcpServer< Protocol >::nak	(	const DhcpPacket &	request,
		const std::string &	message = {} )

inline

refuse a REQUEST message with a NAK.

Parameters

request	message being refused.
message	human readable reason, empty to give none.

Returns: 0 on success, -1 on failure.

◆ offer()

template<class Protocol >

int join::BasicDhcpServer< Protocol >::offer	(	const DhcpPacket &	request,
		const IpAddress &	address,
		const DhcpOption &	options = {} )

inline

answer a DISCOVER message with an OFFER.

Parameters

request	message being answered.
address	address offered to the client.
options	options to advertise, the message type and the server identifier are added.

Returns: 0 on success, -1 on failure.

◆ onDecline()

template<class Protocol >

virtual void join::BasicDhcpServer< Protocol >::onDecline ( const DhcpPacket & request )

protectedpure virtual

method called when a DECLINE message is received.

Parameters

request message received.

◆ onDiscover()

template<class Protocol >

virtual void join::BasicDhcpServer< Protocol >::onDiscover ( const DhcpPacket & request )

protectedpure virtual

method called when a DISCOVER message is received.

Parameters

request message received.

◆ onInform()

template<class Protocol >

virtual void join::BasicDhcpServer< Protocol >::onInform ( const DhcpPacket & request )

protectedpure virtual

method called when an INFORM message is received.

Parameters

request message received.

◆ onMessage()

template<class Protocol >

void join::BasicDhcpServer< Protocol >::onMessage ( DhcpPacket::Ptr packet )

inlinefinaloverrideprotectedvirtual

dispatch a received message to the handler for its type.

Parameters

packet message received.

Implements join::BasicDhcp< Protocol >.

◆ onRelease()

template<class Protocol >

virtual void join::BasicDhcpServer< Protocol >::onRelease ( const DhcpPacket & request )

protectedpure virtual

method called when a RELEASE message is received.

Parameters

request message received.

◆ onRequest()

template<class Protocol >

virtual void join::BasicDhcpServer< Protocol >::onRequest ( const DhcpPacket & request )

protectedpure virtual

method called when a REQUEST message is received.

Parameters

request message received.

◆ reply()

template<class Protocol >

int join::BasicDhcpServer< Protocol >::reply	(	const DhcpPacket &	request,
		uint8_t	type,
		const IpAddress &	address,
		const DhcpOption &	options )

inlineprotected

answer a message received from a client.

Parameters

request	message being answered.
type	message type of the answer.
address	address assigned to the client.
options	options to advertise.

Returns: 0 on success, -1 on failure.

The documentation for this class was generated from the following files:

fabric/include/join/dhcp.hpp
fabric/include/join/dhcp_protocol.hpp
