join::DhcpPacket Struct Reference

DHCP message. More...

#include <dhcp_message.hpp>

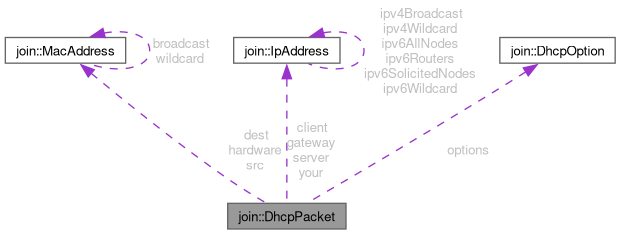

Collaboration diagram for join::DhcpPacket:

Public Types
using	Ptr = std::unique_ptr<DhcpPacket>
	pointer to a DHCP message.

Public Attributes
MacAddress	src
	link layer source address, set by the transport.
MacAddress	dest
	link layer destination address, set by the transport.
MacAddress	hardware
	client hardware address, carried by the message itself.
IpAddress	client {AF_INET}
	client IP address, set when the client already owns a lease.
IpAddress	your {AF_INET}
	IP address the server assigns to the client.
IpAddress	server {AF_INET}
	IP address of the next server to use at boot time.
IpAddress	gateway {AF_INET}
	IP address of the relay agent the message went through.
uint32_t	id = 0
	transaction identifier.
uint16_t	secs = 0
	seconds elapsed since the client started the acquisition.
uint16_t	flags = 0
	message flags.
uint8_t	op = 0
	operation code.
DhcpOption	options
	message options.

Detailed Description

DHCP message.

Member Typedef Documentation

Ptr

using join::DhcpPacket::Ptr = std::unique_ptr<DhcpPacket>

pointer to a DHCP message.

Member Data Documentation

client

IpAddress join::DhcpPacket::client {AF_INET}

client IP address, set when the client already owns a lease.

dest

MacAddress join::DhcpPacket::dest

link layer destination address, set by the transport.

flags

uint16_t join::DhcpPacket::flags = 0

message flags.

gateway

IpAddress join::DhcpPacket::gateway {AF_INET}

IP address of the relay agent the message went through.

hardware

MacAddress join::DhcpPacket::hardware

client hardware address, carried by the message itself.

id

uint32_t join::DhcpPacket::id = 0

transaction identifier.

op

uint8_t join::DhcpPacket::op = 0

operation code.

options

DhcpOption join::DhcpPacket::options

message options.

secs

uint16_t join::DhcpPacket::secs = 0

seconds elapsed since the client started the acquisition.

server

IpAddress join::DhcpPacket::server {AF_INET}

IP address of the next server to use at boot time.

src

MacAddress join::DhcpPacket::src

link layer source address, set by the transport.

your

IpAddress join::DhcpPacket::your {AF_INET}

IP address the server assigns to the client.

---

The documentation for this struct was generated from the following file:

• fabric/include/join/dhcp_message.hpp
