join::BasicDhcp< Protocol > Class Template Reference

carries DHCP messages over a packet socket. More...

#include <dhcp.hpp>

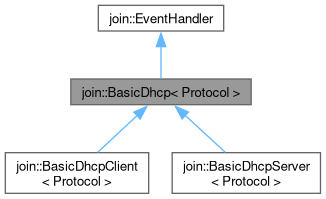

Inheritance diagram for join::BasicDhcp< Protocol >:

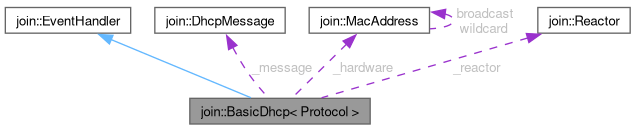

Collaboration diagram for join::BasicDhcp< Protocol >:

Public Types
using	Socket = typename Protocol::Socket

Public Member Functions
	BasicDhcp ()=delete
	create the BasicDhcp instance.
	BasicDhcp (const std::string &interface, Reactor &reactor=ReactorThread::reactor())
	create the instance bound to the given interface.
	BasicDhcp (const BasicDhcp &other)=delete
	create instance by copy.
BasicDhcp &	operator= (const BasicDhcp &other)=delete
	assign instance by copy.
	BasicDhcp (BasicDhcp &&other)=delete
	create instance by move.
BasicDhcp &	operator= (BasicDhcp &&other)=delete
	assign instance by move.
virtual	~BasicDhcp ()=default
	destroy the instance.
const std::string &	interface () const noexcept
	get the name of the interface the instance is bound to.
const MacAddress &	hardware () const noexcept
	get the hardware address of the interface the instance is bound to.
Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.
	EventHandler (const EventHandler &other)=default
	copy constructor.
EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.
	EventHandler (EventHandler &&other)=default
	move constructor.
EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.
virtual	~EventHandler ()=default
	destroy instance.

Protected Member Functions
struct	__attribute__ ((packed, aligned(2))) Frame
	link, internet and transport headers a DHCP message is framed with.
struct	__attribute__ ((packed, aligned(2))) Pseudo
	header the UDP checksum is computed over, RFC 768.
void	attach ()
	register with the reactor, to be called by the final class once fully constructed.
void	detach () noexcept
	unregister from the reactor, to be called by the final class before destruction starts.
int	send (const char *data, size_t size, const MacAddress &to, const IpAddress &source, const IpAddress &destination) noexcept
	frame a message and write it on the wire.
ssize_t	receive (char *data, size_t maxSize, MacAddress &from, MacAddress &to) noexcept
	read a message that passed the link, internet and transport checks.
Protected Member Functions inherited from join::EventHandler
virtual void	onEvent (int fd, uint32_t revents)
	method called when events are reported on handle.
virtual void	onReadable (int fd)
	method called when data are ready to be read on handle.
virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.
virtual void	onClose (int fd)
	method called when handle was closed by the peer.
virtual void	onError (int fd)
	method called when an error occurred on handle.

Static Protected Member Functions
static uint16_t	udpChecksum (const Frame &frame, const char *payload, size_t size) noexcept
	compute the checksum of a UDP datagram, RFC 768.

Protected Attributes
Socket	_socket
	underlying socket.
DhcpMessage	_message
	DHCP message codec.
std::unique_ptr< char[]>	_buffer
	receive buffer.
const std::string	_interface
	interface name.
const MacAddress	_hardware
	hardware address of the interface.
Reactor &	_reactor
	event loop reactor.

Detailed Description

template<class Protocol>
class join::BasicDhcp< Protocol >

carries DHCP messages over a packet socket.

Member Typedef Documentation

Socket

template<class Protocol >

using join::BasicDhcp< Protocol >::Socket = typename Protocol::Socket

Constructor & Destructor Documentation

BasicDhcp() [1/4]

template<class Protocol >

join::BasicDhcp< Protocol >::BasicDhcp ( )

delete

create the BasicDhcp instance.

BasicDhcp() [2/4]

template<class Protocol >

join::BasicDhcp< Protocol >::BasicDhcp ( const std::string & interface, Reactor & reactor = ReactorThread::reactor () )

inlineexplicit

create the instance bound to the given interface.

Parameters

interface	interface name.
reactor	reactor instance.

Exceptions

std::system_error

if the interface is unknown or the socket could not be bound to it.

BasicDhcp() [3/4]

template<class Protocol >

join::BasicDhcp< Protocol >::BasicDhcp ( const BasicDhcp< Protocol > & other )

delete

create instance by copy.

Parameters

other

other object to copy.

BasicDhcp() [4/4]

template<class Protocol >

join::BasicDhcp< Protocol >::BasicDhcp ( BasicDhcp< Protocol > && other )

delete

create instance by move.

Parameters

other

other object to move.

~BasicDhcp()

template<class Protocol >

virtual join::BasicDhcp< Protocol >::~BasicDhcp ( )

virtualdefault

destroy the instance.

Member Function Documentation

__attribute__() [1/2]

template<class Protocol >

struct join::BasicDhcp< Protocol >::__attribute__ ( (packed, aligned(2)) )

inlineprotected

link, internet and transport headers a DHCP message is framed with.

__attribute__() [2/2]

template<class Protocol >

struct join::BasicDhcp< Protocol >::__attribute__ ( (packed, aligned(2)) )

inlineprotected

header the UDP checksum is computed over, RFC 768.

attach()

template<class Protocol >

void join::BasicDhcp< Protocol >::attach ( )

inlineprotected

register with the reactor, to be called by the final class once fully constructed.

Exceptions

std::system_error

if the registration failed.

detach()

template<class Protocol >

void join::BasicDhcp< Protocol >::detach ( )

inlineprotectednoexcept

unregister from the reactor, to be called by the final class before destruction starts.

hardware()

template<class Protocol >

const MacAddress & join::BasicDhcp< Protocol >::hardware ( ) const

inlinenoexcept

get the hardware address of the interface the instance is bound to.

Returns

the hardware address.

interface()

template<class Protocol >

const std::string & join::BasicDhcp< Protocol >::interface ( ) const

inlinenoexcept

get the name of the interface the instance is bound to.

Returns

the interface name.

operator=() [1/2]

template<class Protocol >

BasicDhcp & join::BasicDhcp< Protocol >::operator= ( BasicDhcp< Protocol > && other )

delete

assign instance by move.

Parameters

other

other object to move.

Returns

a reference of the current object.

operator=() [2/2]

template<class Protocol >

BasicDhcp & join::BasicDhcp< Protocol >::operator= ( const BasicDhcp< Protocol > & other )

delete

assign instance by copy.

Parameters

other

other object to copy.

Returns

a reference of the current object.

receive()

template<class Protocol >

ssize_t join::BasicDhcp< Protocol >::receive ( char * data, size_t maxSize, MacAddress & from, MacAddress & to )

inlineprotectednoexcept

read a message that passed the link, internet and transport checks.

Parameters

data	buffer used to store the message.
maxSize	maximum number of bytes to read.
from	link layer address the message came from.
to	link layer address the message was sent to.

Returns

the message size, -1 if nothing valid was read.

send()

template<class Protocol >

int join::BasicDhcp< Protocol >::send ( const char * data, size_t size, const MacAddress & to, const IpAddress & source, const IpAddress & destination )

inlineprotectednoexcept

frame a message and write it on the wire.

Parameters

data	message to write.
size	message size.
to	link layer destination address.
source	source address.
destination	destination address.

Returns

0 on success, -1 on failure.

udpChecksum()

template<class Protocol >

static uint16_t join::BasicDhcp< Protocol >::udpChecksum ( const Frame & frame, const char * payload, size_t size )

inlinestaticprotectednoexcept

compute the checksum of a UDP datagram, RFC 768.

Parameters

frame	frame carrying the datagram, its checksum field must be zero.
payload	datagram payload.
size	payload size.

Returns

the checksum.

Member Data Documentation

_buffer

template<class Protocol >

std::unique_ptr<char[]> join::BasicDhcp< Protocol >::_buffer

protected

receive buffer.

_hardware

template<class Protocol >

const MacAddress join::BasicDhcp< Protocol >::_hardware

protected

hardware address of the interface.

_interface

template<class Protocol >

const std::string join::BasicDhcp< Protocol >::_interface

protected

interface name.

_message

template<class Protocol >

DhcpMessage join::BasicDhcp< Protocol >::_message

protected

DHCP message codec.

_reactor

template<class Protocol >

Reactor& join::BasicDhcp< Protocol >::_reactor

protected

event loop reactor.

_socket

template<class Protocol >

Socket join::BasicDhcp< Protocol >::_socket

protected

underlying socket.

---

The documentation for this class was generated from the following files:

• fabric/include/join/dhcp.hpp
• fabric/include/join/dhcp_protocol.hpp
