DHCP client. More...

#include <dhcp.hpp>

Inheritance diagram for join::BasicDhcpClient< Protocol >:

[legend]

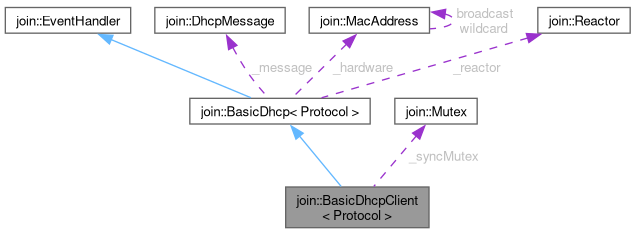

Collaboration diagram for join::BasicDhcpClient< Protocol >:

[legend]

Classes
struct	PendingRequest
	message waiting for its answer. More...

Public Member Functions
	BasicDhcpClient ()=delete
	create the BasicDhcpClient instance.

	BasicDhcpClient (const std::string &interface, uint16_t maxSize=0, const std::string &hostname={}, Reactor &reactor=ReactorThread::reactor())
	create the instance bound to the given interface.

virtual	~BasicDhcpClient ()=default
	destroy the instance.

DhcpPacket	compose (uint8_t type) const
	build a message carrying what every message a client sends has in common.

DhcpPacket::Ptr	exchange (DhcpPacket &request, const IpAddress &destination, uint8_t expected, std::chrono::milliseconds timeout=std::chrono::seconds(1))
	send a message and wait for its answer.

std::string	reason () const
	get the reason the server gave for the last refusal.

DhcpPacket::Ptr	discover (const IpAddress &wants=IpAddress::ipv4Wildcard, std::chrono::milliseconds timeout=std::chrono::seconds(1))
	broadcast a DISCOVER message and wait for an OFFER.

DhcpPacket::Ptr	request (const IpAddress &wants, const IpAddress &server, std::chrono::milliseconds timeout=std::chrono::seconds(1))
	broadcast a REQUEST message and wait for an ACK.

DhcpPacket::Ptr	renew (const IpAddress &client, const IpAddress &server, std::chrono::milliseconds timeout=std::chrono::seconds(1))
	send a REQUEST message to the server holding the lease and wait for an ACK.

DhcpPacket::Ptr	inform (const IpAddress &client, std::chrono::milliseconds timeout=std::chrono::seconds(1))
	ask a server for the parameters of an externally configured address.

int	release (const IpAddress &client, const IpAddress &server, std::chrono::milliseconds timeout=std::chrono::seconds(1))
	give a lease back to the server holding it.

int	decline (const IpAddress &address, const IpAddress &server, const std::string &message={})
	tell the server that the address it offered is already in use.

Public Member Functions inherited from join::BasicDhcp< Protocol >
	BasicDhcp ()=delete
	create the BasicDhcp instance.

	BasicDhcp (const std::string &interface, Reactor &reactor=ReactorThread::reactor())
	create the instance bound to the given interface.

	BasicDhcp (const BasicDhcp &other)=delete
	create instance by copy.

BasicDhcp &	operator= (const BasicDhcp &other)=delete
	assign instance by copy.

	BasicDhcp (BasicDhcp &&other)=delete
	create instance by move.

BasicDhcp &	operator= (BasicDhcp &&other)=delete
	assign instance by move.

virtual	~BasicDhcp ()
	destroy the instance.

const std::string &	interface () const noexcept
	get the name of the interface the instance is bound to.

const MacAddress &	hardware () const noexcept
	get the hardware address of the interface the instance is bound to.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

	EventHandler (const EventHandler &other)=default
	copy constructor.

EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.

	EventHandler (EventHandler &&other)=default
	move constructor.

EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.

virtual	~EventHandler ()=default
	destroy instance.

Protected Member Functions
void	onMessage (DhcpPacket::Ptr packet) override final
	hand a received message to the request waiting for it.

Protected Member Functions inherited from join::BasicDhcp< Protocol >
struct	__attribute__ ((packed)) Frame
	link, internet and transport headers a DHCP message is framed with.

struct	__attribute__ ((packed)) Pseudo
	header the UDP checksum is computed over, RFC 768.

void	onReadable (int fd) override final
	method called when data are ready to be read.

int	transmit (const DhcpPacket &packet, const IpAddress &source, const IpAddress &destination)
	frame a message and write it on the wire.

DhcpPacket::Ptr	receive (const char *data, size_t size) const
	decode a frame received on the wire.

Protected Member Functions inherited from join::EventHandler
virtual void	onEvent (int fd, uint32_t revents)
	method called when events are reported on handle.

virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.

virtual void	onClose (int fd)
	method called when handle was closed by the peer.

virtual void	onError (int fd)
	method called when an error occurred on handle.

Protected Attributes
std::unordered_map< uint32_t, std::unique_ptr< PendingRequest > >	_pending
	messages waiting for their answer, indexed by transaction identifier.

Mutex	_syncMutex
	mutex for synchronous operations.

std::string	_reason
	reason the server gave for the last refusal.

const std::string	_hostname
	host name to advertise.

const uint16_t	_maxSize
	biggest message the server may send back.

Protected Attributes inherited from join::BasicDhcp< Protocol >
Socket	_socket
	underlying socket.

DhcpMessage	_message
	DHCP message codec.

std::unique_ptr< char[]>	_buffer
	receive buffer.

const std::string	_interface
	interface name.

const MacAddress	_hardware
	hardware address of the interface.

Reactor &	_reactor
	event loop reactor.

Static Protected Attributes
static const ByteList	_defaultParams
	options a client asks for by default.

Additional Inherited Members
Public Types inherited from join::BasicDhcp< Protocol >
using	Socket = typename Protocol::Socket

Static Protected Member Functions inherited from join::BasicDhcp< Protocol >
static uint16_t	udpChecksum (const Frame &frame, const char *payload, size_t size)
	compute the checksum of a UDP datagram, RFC 768.

Detailed Description

template<class Protocol>
class join::BasicDhcpClient< Protocol >

DHCP client.

Constructor & Destructor Documentation

◆ BasicDhcpClient() [1/2]

template<class Protocol >

join::BasicDhcpClient< Protocol >::BasicDhcpClient ( )

delete

create the BasicDhcpClient instance.

◆ BasicDhcpClient() [2/2]

template<class Protocol >

join::BasicDhcpClient< Protocol >::BasicDhcpClient	(	const std::string &	interface,
		uint16_t	maxSize = 0,
		const std::string &	hostname = {},
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

create the instance bound to the given interface.

Parameters

interface	interface name.
maxSize	biggest message the server may send back, zero to leave it unspecified.
hostname	host name to advertise, empty to advertise none.
reactor	reactor instance.

Exceptions

std::system_error if the interface is unknown, the socket could not be bound to it, or the maximum message size is below what RFC 2132 allows.

◆ ~BasicDhcpClient()

template<class Protocol >

virtual join::BasicDhcpClient< Protocol >::~BasicDhcpClient ( )

virtualdefault

destroy the instance.

Member Function Documentation

◆ compose()

template<class Protocol >

DhcpPacket join::BasicDhcpClient< Protocol >::compose ( uint8_t type ) const

inline

build a message carrying what every message a client sends has in common.

Parameters

type	message type.

Returns: the message.

◆ decline()

template<class Protocol >

int join::BasicDhcpClient< Protocol >::decline	(	const IpAddress &	address,
		const IpAddress &	server,
		const std::string &	message = {} )

inline

tell the server that the address it offered is already in use.

Parameters

address	address the client refuses.
server	address of the server that offered it.
message	human readable reason, empty to give none.

Returns: 0 on success, -1 on failure.

◆ discover()

template<class Protocol >

DhcpPacket::Ptr join::BasicDhcpClient< Protocol >::discover	(	const IpAddress &	wants = IpAddress::ipv4Wildcard,
		std::chrono::milliseconds	timeout = std::chrono::seconds (1) )

inline

broadcast a DISCOVER message and wait for an OFFER.

Parameters

wants	address the client would like to get, wildcard to let the server choose.
timeout	answer timeout.

Returns: the offer received, nullptr on failure.

◆ exchange()

template<class Protocol >

DhcpPacket::Ptr join::BasicDhcpClient< Protocol >::exchange	(	DhcpPacket &	request,
		const IpAddress &	destination,
		uint8_t	expected,
		std::chrono::milliseconds	timeout = std::chrono::seconds (1) )

inline

send a message and wait for its answer.

Parameters

request	message to send.
destination	destination address.
expected	message type the answer must carry.
timeout	answer timeout.

Returns: the answer received, nullptr on failure.

◆ inform()

template<class Protocol >

DhcpPacket::Ptr join::BasicDhcpClient< Protocol >::inform	(	const IpAddress &	client,
		std::chrono::milliseconds	timeout = std::chrono::seconds (1) )

inline

ask a server for the parameters of an externally configured address.

Parameters

client	address the client already owns.
timeout	answer timeout.

Returns: the acknowledgement received, nullptr on failure.

◆ onMessage()

template<class Protocol >

void join::BasicDhcpClient< Protocol >::onMessage ( DhcpPacket::Ptr packet )

inlinefinaloverrideprotectedvirtual

hand a received message to the request waiting for it.

Parameters

packet message received.

Implements join::BasicDhcp< Protocol >.

◆ reason()

template<class Protocol >

std::string join::BasicDhcpClient< Protocol >::reason ( ) const

inline

get the reason the server gave for the last refusal.

Returns: the reason, empty if the server gave none or if nothing was refused.

◆ release()

template<class Protocol >

int join::BasicDhcpClient< Protocol >::release	(	const IpAddress &	client,
		const IpAddress &	server,
		std::chrono::milliseconds	timeout = std::chrono::seconds (1) )

inline

give a lease back to the server holding it.

Parameters

client	address the client currently owns.
server	address of the server holding the lease.
timeout	time allowed to resolve the server hardware address.

Returns: 0 on success, -1 on failure.

◆ renew()

template<class Protocol >

DhcpPacket::Ptr join::BasicDhcpClient< Protocol >::renew	(	const IpAddress &	client,
		const IpAddress &	server,
		std::chrono::milliseconds	timeout = std::chrono::seconds (1) )

inline

send a REQUEST message to the server holding the lease and wait for an ACK.

Parameters

client	address the client currently owns.
server	address of the server holding the lease.
timeout	answer timeout.

Returns: the acknowledgement received, nullptr on failure.

◆ request()

template<class Protocol >

DhcpPacket::Ptr join::BasicDhcpClient< Protocol >::request	(	const IpAddress &	wants,
		const IpAddress &	server,
		std::chrono::milliseconds	timeout = std::chrono::seconds (1) )

inline

broadcast a REQUEST message and wait for an ACK.

Parameters

wants	address the client asks to be assigned.
server	address of the server the offer came from.
timeout	answer timeout.

Returns: the acknowledgement received, nullptr on failure.

Member Data Documentation

◆ _defaultParams

template<class Protocol >

const ByteList join::BasicDhcpClient< Protocol >::_defaultParams

staticprotected

Initial value:

= {DhcpOption::SubnetMask,       DhcpOption::Router,
                                                                DhcpOption::DomainNameServer, DhcpOption::DomainName,
                                                                DhcpOption::BroadcastAddress, DhcpOption::InterfaceMtu}

options a client asks for by default.

◆ _hostname

template<class Protocol >

const std::string join::BasicDhcpClient< Protocol >::_hostname

protected

host name to advertise.

◆ _maxSize

template<class Protocol >

const uint16_t join::BasicDhcpClient< Protocol >::_maxSize

protected

biggest message the server may send back.

◆ _pending

template<class Protocol >

std::unordered_map<uint32_t, std::unique_ptr<PendingRequest> > join::BasicDhcpClient< Protocol >::_pending

protected

messages waiting for their answer, indexed by transaction identifier.

◆ _reason

template<class Protocol >

std::string join::BasicDhcpClient< Protocol >::_reason

protected

reason the server gave for the last refusal.

◆ _syncMutex

template<class Protocol >

Mutex join::BasicDhcpClient< Protocol >::_syncMutex

mutableprotected

mutex for synchronous operations.

The documentation for this class was generated from the following files:

fabric/include/join/dhcp.hpp
fabric/include/join/dhcp_protocol.hpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BasicDhcpClient() [1/2]

◆ BasicDhcpClient() [2/2]

◆ ~BasicDhcpClient()

Member Function Documentation

◆ compose()

◆ decline()

◆ discover()

◆ exchange()

◆ inform()

◆ onMessage()

◆ reason()

◆ release()

◆ renew()

◆ request()

Member Data Documentation

◆ _defaultParams

◆ _hostname

◆ _maxSize

◆ _pending

◆ _reason

◆ _syncMutex
