join::RouteManager Class Reference

kernel routing table manager class. More...

#include <routemanager.hpp>

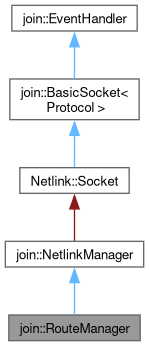

Inheritance diagram for join::RouteManager:

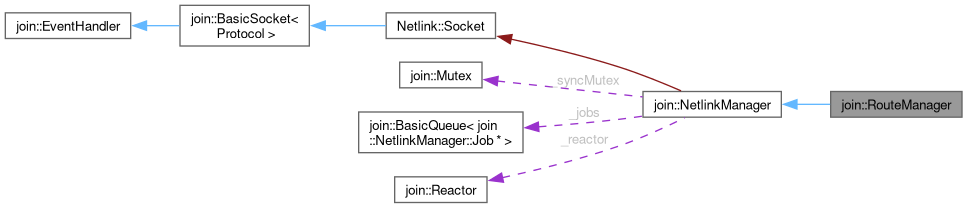

Collaboration diagram for join::RouteManager:

Public Types
using	RouteNotify = std::function<void (const RouteInfo& info)>

Public Member Functions
	RouteManager (Reactor &reactor=ReactorThread::reactor())
	create instance.
	RouteManager (const RouteManager &)=delete
	create instance by copy.
	RouteManager (RouteManager &&)=delete
	create instance by move.
RouteManager &	operator= (const RouteManager &)=delete
	assign instance by copy.
RouteManager &	operator= (RouteManager &&)=delete
	assign instance by move.
	~RouteManager ()
	destroy instance.
Route::Ptr	findByIndex (uint32_t index, const IpAddress &dest, uint32_t prefix)
	find a route entry by interface index, destination and prefix.
Route::Ptr	findByName (const std::string &interfaceName, const IpAddress &dest, uint32_t prefix)
	find a route entry by interface name, destination and prefix.
RouteList	enumerate ()
	enumerate all cached route entries.
RouteList	enumerate (uint32_t index)
	enumerate all cached route entries for a given interface.
RouteList	enumerate (const std::string &interfaceName)
	enumerate all cached route entries for a given interface.
int	refresh ()
	refresh all data.
uint64_t	addRouteListener (const RouteNotify &cb)
	register a callback invoked on any route table change.
void	removeRouteListener (uint64_t id)
	unregister a previously registered callback.
int	addRoute (uint32_t index, const IpAddress &dest, uint32_t prefix, const IpAddress &gateway={}, uint32_t metric=0, bool sync=false)
	add a route entry in the kernel table.
int	addRoute (const std::string &interfaceName, const IpAddress &dest, uint32_t prefix, const IpAddress &gateway={}, uint32_t metric=0, bool sync=false)
	add a route entry in the kernel table.
int	removeRoute (uint32_t index, const IpAddress &dest, uint32_t prefix, bool sync=false)
	remove a route entry from the kernel table.
int	removeRoute (const std::string &interfaceName, const IpAddress &dest, uint32_t prefix, bool sync=false)
	remove a route entry from the kernel table.
int	flushRoutes (uint32_t index, bool sync=false)
	flush all route entries for a given interface.
int	flushRoutes (const std::string &interfaceName, bool sync=false)
	flush all route entries for a given interface.
Public Member Functions inherited from join::NetlinkManager
	NetlinkManager (uint32_t groups, Reactor &reactor=ReactorThread::reactor())
	create instance.
	NetlinkManager (const NetlinkManager &)=delete
	create instance by copy.
	NetlinkManager (NetlinkManager &&)=delete
	create instance by move.
NetlinkManager &	operator= (const NetlinkManager &)=delete
	assign instance by copy.
NetlinkManager &	operator= (NetlinkManager &&)=delete
	assign instance by move.
virtual	~NetlinkManager ()
	destroy instance.
Reactor &	reactor () const noexcept
	get the event loop reactor.
Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.
	EventHandler (const EventHandler &other)=default
	copy constructor.
EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.
	EventHandler (EventHandler &&other)=default
	move constructor.
EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.
virtual	~EventHandler ()=default
	destroy instance.

Static Public Member Functions
static RouteManager &	instance ()
	get the singleton instance.

Friends
class	Route

Additional Inherited Members
Protected Member Functions inherited from join::NetlinkManager
void	start ()
	start listening for netlink events.
void	stop ()
	stop listening for netlink events.
int	sendRequest (struct nlmsghdr *nlh, bool sync, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	send a netlink request, optionally waiting for the ack.
template<typename Func , typename... Args>
void	pushJob (Func &&func, Args &&... args) noexcept
	push a job to be executed on the reactor thread.
virtual void	onReadable (int fd) override final
	method called when data are ready to be read on handle.
void	notifyRequest (uint32_t seq, int error=0)
	notify a pending synchronous request.
Protected Member Functions inherited from join::EventHandler
virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.
virtual void	onClose (int fd)
	method called when handle was closed by the peer.
virtual void	onError (int fd)
	method called when an error occurred on handle.
Static Protected Member Functions inherited from join::NetlinkManager
static void	addAttributes (struct nlmsghdr *nlh, int type, const void *data, int alen)
	add an attribute to a netlink message.
static struct rtattr *	startNestedAttributes (struct nlmsghdr *nlh, int type)
	open a nested attribute block.
static int	stopNestedAttributes (struct nlmsghdr *nlh, struct rtattr *nested)
	close a nested attribute block.
template<typename T , typename Flag >
static Flag	updateValue (T &oldVal, const T &newVal, Flag changed)
	update a value in place and report whether it changed.
Protected Attributes inherited from join::NetlinkManager
std::unique_ptr< char[]>	_buffer
	internal read buffer.
std::atomic< uint32_t >	_seq
	sequence number.
std::unordered_map< uint32_t, std::unique_ptr< PendingRequest > >	_pending
	synchronous requests indexed by sequence number.
Mutex	_syncMutex
	protection mutex.
LocalMem::Mpsc::Queue< Job * >	_jobs
	job queue.
int	_wakeup = -1
	eventfd used to wake the reactor thread for pending jobs.
Reactor &	_reactor
	event loop reactor.
Static Protected Attributes inherited from join::NetlinkManager
static constexpr size_t	_bufferSize = 16384
	internal buffer size.
static constexpr size_t	_jobQueueSize = 256
	job queue size.

Detailed Description

kernel routing table manager class.

Member Typedef Documentation

RouteNotify

using join::RouteManager::RouteNotify = std::function<void (const RouteInfo& info)>

Constructor & Destructor Documentation

RouteManager() [1/3]

RouteManager::RouteManager ( Reactor & reactor = ReactorThread::reactor () )

explicit

create instance.

Parameters

reactor

event loop reactor (uses ReactorThread if nullptr).

RouteManager() [2/3]

join::RouteManager::RouteManager ( const RouteManager & )

delete

create instance by copy.

RouteManager() [3/3]

join::RouteManager::RouteManager ( RouteManager && )

delete

create instance by move.

~RouteManager()

RouteManager::~RouteManager

(

)

destroy instance.

Member Function Documentation

addRoute() [1/2]

int RouteManager::addRoute	(	const std::string &	interfaceName,
		const IpAddress &	dest,
		uint32_t	prefix,
		const IpAddress &	gateway = {},
		uint32_t	metric = 0,
		bool	sync = false )

add a route entry in the kernel table.

Parameters

interfaceName	interface name.
dest	destination network address.
prefix	prefix length.
gateway	gateway address.
metric	route metric.
sync	wait for completion.

Returns

0 on success, -1 on failure.

addRoute() [2/2]

int RouteManager::addRoute	(	uint32_t	index,
		const IpAddress &	dest,
		uint32_t	prefix,
		const IpAddress &	gateway = {},
		uint32_t	metric = 0,
		bool	sync = false )

add a route entry in the kernel table.

Parameters

index	interface index.
dest	destination network address.
prefix	prefix length.
gateway	gateway address.
metric	route metric.
sync	wait for completion.

Returns

0 on success, -1 on failure.

addRouteListener()

uint64_t RouteManager::addRouteListener

(

const RouteNotify &

cb

)

register a callback invoked on any route table change.

Parameters

cb	callback to register.

Returns

unique id for the callback.

enumerate() [1/3]

RouteList RouteManager::enumerate

(

)

enumerate all cached route entries.

Returns

snapshot of the current route list.

enumerate() [2/3]

RouteList RouteManager::enumerate

(

const std::string &

interfaceName

)

enumerate all cached route entries for a given interface.

Parameters

interfaceName

interface name.

Returns

snapshot of route entries on that interface.

enumerate() [3/3]

RouteList RouteManager::enumerate

(

uint32_t

index

)

enumerate all cached route entries for a given interface.

Parameters

index

interface index.

Returns

snapshot of route entries on that interface.

findByIndex()

Route::Ptr RouteManager::findByIndex	(	uint32_t	index,
		const IpAddress &	dest,
		uint32_t	prefix )

find a route entry by interface index, destination and prefix.

Parameters

index	interface index.
dest	destination network address.
prefix	prefix length.

Returns

route pointer, or nullptr if not found.

findByName()

Route::Ptr RouteManager::findByName	(	const std::string &	interfaceName,
		const IpAddress &	dest,
		uint32_t	prefix )

find a route entry by interface name, destination and prefix.

Parameters

interfaceName	interface name.
dest	destination network address.
prefix	prefix length.

Returns

route pointer, or nullptr if not found.

flushRoutes() [1/2]

int RouteManager::flushRoutes	(	const std::string &	interfaceName,
		bool	sync = false )

flush all route entries for a given interface.

Parameters

interfaceName	interface name.
sync	wait for completion.

Returns

0 on success, -1 on failure.

flushRoutes() [2/2]

int RouteManager::flushRoutes	(	uint32_t	index,
		bool	sync = false )

flush all route entries for a given interface.

Parameters

index	interface index.
sync	wait for completion.

Returns

0 on success, -1 on failure.

instance()

RouteManager & RouteManager::instance ( )

static

get the singleton instance.

Returns

reference to the singleton instance.

operator=() [1/2]

RouteManager & join::RouteManager::operator= ( const RouteManager & )

delete

assign instance by copy.

operator=() [2/2]

RouteManager & join::RouteManager::operator= ( RouteManager && )

delete

assign instance by move.

refresh()

int RouteManager::refresh

(

)

refresh all data.

Returns

0 on success, -1 on failure.

removeRoute() [1/2]

int RouteManager::removeRoute	(	const std::string &	interfaceName,
		const IpAddress &	dest,
		uint32_t	prefix,
		bool	sync = false )

remove a route entry from the kernel table.

Parameters

interfaceName	interface name.
dest	destination network address.
prefix	prefix length.
sync	wait for completion.

Returns

0 on success, -1 on failure.

removeRoute() [2/2]

int RouteManager::removeRoute	(	uint32_t	index,
		const IpAddress &	dest,
		uint32_t	prefix,
		bool	sync = false )

remove a route entry from the kernel table.

Parameters

index	interface index.
dest	destination network address.
prefix	prefix length.
sync	wait for completion.

Returns

0 on success, -1 on failure.

removeRouteListener()

void RouteManager::removeRouteListener

(

uint64_t

id

)

unregister a previously registered callback.

Parameters

id	unique id of the callback function to remove.

Friends And Related Symbol Documentation

Route

friend class Route

friend

---

The documentation for this class was generated from the following files:

• fabric/include/join/routemanager.hpp
• fabric/src/routemanager.cpp
