basic DNS resolver over TLS socket (DNS over TLS). More...

#include <resolver.hpp>

Inheritance diagram for join::BasicTlsResolver< Protocol >:

[legend]

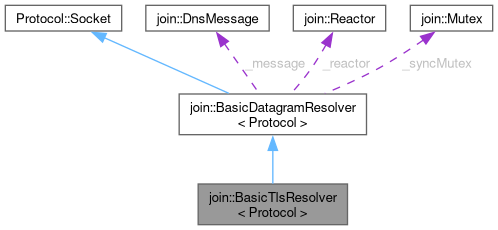

Collaboration diagram for join::BasicTlsResolver< Protocol >:

[legend]

Public Types
using	Socket = typename Protocol::Socket

using	UnderlyingSocket = typename Socket::UnderlyingSocket

using	Endpoint = typename Protocol::Endpoint

Public Types inherited from join::BasicDatagramResolver< Protocol >
using	Socket = typename Protocol::Socket

using	Endpoint = typename Protocol::Endpoint

using	DnsNotify = std::function<void (const DnsPacket&)>
	notification callback definition.

Public Member Functions
	BasicTlsResolver (TlsContext ctx, const std::string &server={}, uint16_t port=Protocol::defaultPort, Reactor &reactor=ReactorThread::reactor())
	construct the DoT resolver instance.

	BasicTlsResolver (const BasicTlsResolver &other)=delete
	copy constructor.

BasicTlsResolver &	operator= (const BasicTlsResolver &other)=delete
	copy assignment operator.

	BasicTlsResolver (BasicTlsResolver &&other)=delete
	move constructor.

BasicTlsResolver &	operator= (BasicTlsResolver &&other)=delete
	move assignment operator.

virtual	~BasicTlsResolver () noexcept
	destroy instance.

Public Member Functions inherited from join::BasicDatagramResolver< Protocol >
	BasicDatagramResolver (const std::string &server={}, uint16_t port=Protocol::defaultPort, Reactor &reactor=ReactorThread::reactor())

	BasicDatagramResolver (Socket &&socket, const std::string &server={}, uint16_t port=Protocol::defaultPort, Reactor &reactor=ReactorThread::reactor())
	construct the resolver instance.

	BasicDatagramResolver (const BasicDatagramResolver &other)=delete
	copy constructor.

BasicDatagramResolver &	operator= (const BasicDatagramResolver &other)=delete
	copy assignment operator.

	BasicDatagramResolver (BasicDatagramResolver &&other)=delete
	move constructor.

BasicDatagramResolver &	operator= (BasicDatagramResolver &&other)=delete
	move assignment operator.

virtual	~BasicDatagramResolver () noexcept
	destroy instance.

IpAddressList	resolveAllAddress (const std::string &host, int family, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name and return all IP addresses found.

IpAddressList	resolveAllAddress (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name and return all IP addresses found.

IpAddress	resolveAddress (const std::string &host, int family, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name using address family.

IpAddress	resolveAddress (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name.

AliasList	resolveAllName (const IpAddress &address, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host address.

std::string	resolveName (const IpAddress &address, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host address.

ServerList	resolveAllNameServer (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host name server.

std::string	resolveNameServer (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name server.

std::string	resolveAuthority (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host start of authority name server.

ExchangerList	resolveAllMailExchanger (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host mail exchanger.

std::string	resolveMailExchanger (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host mail exchanger.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

	EventHandler (const EventHandler &other)=default
	copy constructor.

EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.

	EventHandler (EventHandler &&other)=default
	move constructor.

EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.

virtual	~EventHandler ()=default
	destroy instance.

Static Public Member Functions
static IpAddressList	lookupAllAddress (const std::string &host, int family)=delete
	resolve host name using system name servers and return all IP addresses found.

static IpAddressList	lookupAllAddress (const std::string &host)=delete
	resolve host name using system name servers and return all IP addresses found.

static IpAddress	lookupAddress (const std::string &host, int family)=delete
	resolve host name using system name servers.

static IpAddress	lookupAddress (const std::string &host)=delete
	resolve host name using system name servers.

static AliasList	lookupAllName (const IpAddress &address)=delete
	resolve all host address.

static std::string	lookupName (const IpAddress &address)=delete
	resolve host address.

static ServerList	lookupAllNameServer (const std::string &host)=delete
	resolve all host name server.

static std::string	lookupNameServer (const std::string &host)=delete
	resolve host name server.

static std::string	lookupAuthority (const std::string &host)=delete
	resolve host start of authority name server.

static ExchangerList	lookupAllMailExchanger (const std::string &host)=delete
	resolve all host mail exchanger.

static std::string	lookupMailExchanger (const std::string &host)=delete
	resolve host mail exchanger.

Static Public Member Functions inherited from join::BasicDatagramResolver< Protocol >
static IpAddressList	lookupAllAddress (const std::string &host, int family)
	resolve host name using system name servers and return all IP addresses found.

static IpAddressList	lookupAllAddress (const std::string &host)
	resolve host name using system name servers and return all IP addresses found.

static IpAddress	lookupAddress (const std::string &host, int family)
	resolve host name using system name servers.

static IpAddress	lookupAddress (const std::string &host)
	resolve host name using system name servers.

static AliasList	lookupAllName (const IpAddress &address)
	resolve all host address.

static std::string	lookupName (const IpAddress &address)
	resolve host address.

static ServerList	lookupAllNameServer (const std::string &host)
	resolve all host name server.

static std::string	lookupNameServer (const std::string &host)
	resolve host name server.

static std::string	lookupAuthority (const std::string &host)
	resolve host start of authority name server.

static ExchangerList	lookupAllMailExchanger (const std::string &host)
	resolve all host mail exchanger.

static std::string	lookupMailExchanger (const std::string &host)
	resolve host mail exchanger.

static IpAddressList	nameServers () noexcept
	get IP address of the currently configured name servers.

static uint16_t	resolveService (const std::string &service) noexcept
	resolve service name.

Additional Inherited Members
Public Attributes inherited from join::BasicDatagramResolver< Protocol >
DnsNotify	onSuccess
	callback called when a lookup sequence succeed.

DnsNotify	onFailure
	callback called when a lookup sequence failed.

Protected Member Functions inherited from join::BasicDatagramResolver< Protocol >
int	reconnect (const Endpoint &endpoint, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	reconnect to the remote DNS server.

int	query (DnsPacket &packet, std::chrono::milliseconds timeout)
	serialize and send a DNS query, waiting for a response.

void	onReadable (int fd) override final
	method called when data are ready to be read on handle.

void	onClose (int fd) override final
	method called when handle is closed.

void	notify (const DnsNotify &func, const DnsPacket &packet) const noexcept
	safe way to notify DNS events.

Protected Member Functions inherited from join::EventHandler
virtual void	onEvent (int fd, uint32_t revents)
	method called when events are reported on handle.

virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.

virtual void	onError (int fd)
	method called when an error occurred on handle.

Protected Attributes inherited from join::BasicDatagramResolver< Protocol >
DnsMessage	_message
	DNS message codec.

Socket	_socket
	underlying socket.

std::string	_server
	remote DNS server.

uint16_t	_port
	remote DNS server port.

Reactor &	_reactor
	event loop reactor.

std::unique_ptr< char[]>	_buffer
	reception buffer.

std::unordered_map< uint16_t, std::unique_ptr< PendingRequest > >	_pending
	synchronous requests indexed by sequence number.

Mutex	_syncMutex
	protection mutex.

Static Protected Attributes inherited from join::BasicDatagramResolver< Protocol >
static constexpr size_t	_headerSize = 12
	DNS message header size.

Detailed Description

template<class Protocol>
class join::BasicTlsResolver< Protocol >

basic DNS resolver over TLS socket (DNS over TLS).

Member Typedef Documentation

◆ Endpoint

template<class Protocol >

using join::BasicTlsResolver< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Socket

template<class Protocol >

using join::BasicTlsResolver< Protocol >::Socket = typename Protocol::Socket

◆ UnderlyingSocket

template<class Protocol >

using join::BasicTlsResolver< Protocol >::UnderlyingSocket = typename Socket::UnderlyingSocket

Constructor & Destructor Documentation

◆ BasicTlsResolver() [1/3]

template<class Protocol >

join::BasicTlsResolver< Protocol >::BasicTlsResolver	(	TlsContext	ctx,
		const std::string &	server = {},
		uint16_t	port = Protocol::defaultPort,
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

construct the DoT resolver instance.

Parameters

server	remote DNS server address.
port	remote DNS server port.
reactor	reactor instance.

◆ BasicTlsResolver() [2/3]

template<class Protocol >

join::BasicTlsResolver< Protocol >::BasicTlsResolver ( const BasicTlsResolver< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicTlsResolver() [3/3]

template<class Protocol >

join::BasicTlsResolver< Protocol >::BasicTlsResolver ( BasicTlsResolver< Protocol > && other )

delete

move constructor.

Parameters

other other object to move.

◆ ~BasicTlsResolver()

template<class Protocol >

virtual join::BasicTlsResolver< Protocol >::~BasicTlsResolver ( )

inlinevirtualnoexcept

destroy instance.

Member Function Documentation

◆ lookupAddress() [1/2]

template<class Protocol >

static IpAddress join::BasicTlsResolver< Protocol >::lookupAddress ( const std::string & host )

staticdelete

resolve host name using system name servers.

Parameters

host	host name to resolve.

Returns: the first resolved IP address found, wildcard address on error.

◆ lookupAddress() [2/2]

template<class Protocol >

static IpAddress join::BasicTlsResolver< Protocol >::lookupAddress	(	const std::string &	host,
		int	family )

staticdelete

resolve host name using system name servers.

Parameters

host	host name to resolve.
family	address family.

Returns: the first resolved IP address found, wildcard address on error.

◆ lookupAllAddress() [1/2]

template<class Protocol >

static IpAddressList join::BasicTlsResolver< Protocol >::lookupAllAddress ( const std::string & host )

staticdelete

resolve host name using system name servers and return all IP addresses found.

Parameters

host	host name to resolve.

Returns: the resolved IP address list, empty on error.

◆ lookupAllAddress() [2/2]

template<class Protocol >

static IpAddressList join::BasicTlsResolver< Protocol >::lookupAllAddress	(	const std::string &	host,
		int	family )

staticdelete

resolve host name using system name servers and return all IP addresses found.

Parameters

host	host name to resolve.
family	address family.

Returns: the resolved IP address list, empty on error.

◆ lookupAllMailExchanger()

template<class Protocol >

static ExchangerList join::BasicTlsResolver< Protocol >::lookupAllMailExchanger ( const std::string & host )

staticdelete

resolve all host mail exchanger.

Parameters

host	host name to resolve.

Returns: the resolved mail exchanger list.

◆ lookupAllName()

template<class Protocol >

static AliasList join::BasicTlsResolver< Protocol >::lookupAllName ( const IpAddress & address )

staticdelete

resolve all host address.

Parameters

address host address to resolve.

Returns: the resolved alias list.

◆ lookupAllNameServer()

template<class Protocol >

static ServerList join::BasicTlsResolver< Protocol >::lookupAllNameServer ( const std::string & host )

staticdelete

resolve all host name server.

Parameters

host	host name to resolve.

Returns: the resolved name server list.

◆ lookupAuthority()

template<class Protocol >

static std::string join::BasicTlsResolver< Protocol >::lookupAuthority ( const std::string & host )

staticdelete

resolve host start of authority name server.

Parameters

host	host name to resolve.

Returns: the start of authority name server.

◆ lookupMailExchanger()

template<class Protocol >

static std::string join::BasicTlsResolver< Protocol >::lookupMailExchanger ( const std::string & host )

staticdelete

resolve host mail exchanger.

Parameters

host	host name to resolve.

Returns: the first resolved mail exchanger.

◆ lookupName()

template<class Protocol >

static std::string join::BasicTlsResolver< Protocol >::lookupName ( const IpAddress & address )

staticdelete

resolve host address.

Parameters

address host address to resolve.

Returns: the first resolved alias.

◆ lookupNameServer()

template<class Protocol >

static std::string join::BasicTlsResolver< Protocol >::lookupNameServer ( const std::string & host )

staticdelete

resolve host name server.

Parameters

host	host name to resolve.

Returns: the first resolved name server.

◆ operator=() [1/2]

template<class Protocol >

BasicTlsResolver & join::BasicTlsResolver< Protocol >::operator= ( BasicTlsResolver< Protocol > && other )

delete

move assignment operator.

Parameters

other other object to move.

Returns: a reference to the current object.

◆ operator=() [2/2]

template<class Protocol >

BasicTlsResolver & join::BasicTlsResolver< Protocol >::operator= ( const BasicTlsResolver< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to copy.

Returns: a reference to the current object.

The documentation for this class was generated from the following files:

fabric/include/join/dot_protocol.hpp
fabric/include/join/resolver.hpp

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Endpoint

◆ Socket

◆ UnderlyingSocket

Constructor & Destructor Documentation

◆ BasicTlsResolver() [1/3]

◆ BasicTlsResolver() [2/3]

◆ BasicTlsResolver() [3/3]

◆ ~BasicTlsResolver()

Member Function Documentation

◆ lookupAddress() [1/2]

◆ lookupAddress() [2/2]

◆ lookupAllAddress() [1/2]

◆ lookupAllAddress() [2/2]

◆ lookupAllMailExchanger()

◆ lookupAllName()

◆ lookupAllNameServer()

◆ lookupAuthority()

◆ lookupMailExchanger()

◆ lookupName()

◆ lookupNameServer()

◆ operator=() [1/2]

◆ operator=() [2/2]
