basic DNS resolver over datagram socket. More...

#include <resolver.hpp>

Inheritance diagram for join::BasicDatagramResolver< Protocol >:

[legend]

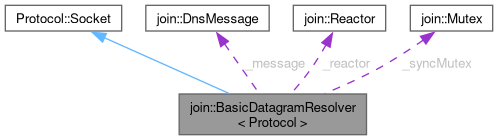

Collaboration diagram for join::BasicDatagramResolver< Protocol >:

[legend]

Classes
struct	PendingRequest
	pending synchronous request. More...

Public Types
using	Socket = typename Protocol::Socket

using	Endpoint = typename Protocol::Endpoint

using	DnsNotify = std::function<void (const DnsPacket&)>
	notification callback definition.

Public Member Functions
	BasicDatagramResolver (const std::string &server={}, uint16_t port=Protocol::defaultPort, Reactor &reactor=ReactorThread::reactor())

	BasicDatagramResolver (Socket &&socket, const std::string &server={}, uint16_t port=Protocol::defaultPort, Reactor &reactor=ReactorThread::reactor())
	construct the resolver instance.

	BasicDatagramResolver (const BasicDatagramResolver &other)=delete
	copy constructor.

BasicDatagramResolver &	operator= (const BasicDatagramResolver &other)=delete
	copy assignment operator.

	BasicDatagramResolver (BasicDatagramResolver &&other)=delete
	move constructor.

BasicDatagramResolver &	operator= (BasicDatagramResolver &&other)=delete
	move assignment operator.

virtual	~BasicDatagramResolver () noexcept
	destroy instance.

IpAddressList	resolveAllAddress (const std::string &host, int family, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name and return all IP addresses found.

IpAddressList	resolveAllAddress (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name and return all IP addresses found.

IpAddress	resolveAddress (const std::string &host, int family, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name using address family.

IpAddress	resolveAddress (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name.

AliasList	resolveAllName (const IpAddress &address, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host address.

std::string	resolveName (const IpAddress &address, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host address.

ServerList	resolveAllNameServer (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host name server.

std::string	resolveNameServer (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name server.

std::string	resolveAuthority (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host start of authority name server.

ExchangerList	resolveAllMailExchanger (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host mail exchanger.

std::string	resolveMailExchanger (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host mail exchanger.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

	EventHandler (const EventHandler &other)=default
	copy constructor.

EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.

	EventHandler (EventHandler &&other)=default
	move constructor.

EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.

virtual	~EventHandler ()=default
	destroy instance.

Static Public Member Functions
static IpAddressList	lookupAllAddress (const std::string &host, int family)
	resolve host name using system name servers and return all IP addresses found.

static IpAddressList	lookupAllAddress (const std::string &host)
	resolve host name using system name servers and return all IP addresses found.

static IpAddress	lookupAddress (const std::string &host, int family)
	resolve host name using system name servers.

static IpAddress	lookupAddress (const std::string &host)
	resolve host name using system name servers.

static AliasList	lookupAllName (const IpAddress &address)
	resolve all host address.

static std::string	lookupName (const IpAddress &address)
	resolve host address.

static ServerList	lookupAllNameServer (const std::string &host)
	resolve all host name server.

static std::string	lookupNameServer (const std::string &host)
	resolve host name server.

static std::string	lookupAuthority (const std::string &host)
	resolve host start of authority name server.

static ExchangerList	lookupAllMailExchanger (const std::string &host)
	resolve all host mail exchanger.

static std::string	lookupMailExchanger (const std::string &host)
	resolve host mail exchanger.

static IpAddressList	nameServers () noexcept
	get IP address of the currently configured name servers.

static uint16_t	resolveService (const std::string &service) noexcept
	resolve service name.

Public Attributes
DnsNotify	onSuccess
	callback called when a lookup sequence succeed.

DnsNotify	onFailure
	callback called when a lookup sequence failed.

Protected Member Functions
virtual int	connect (const Endpoint &endpoint, std::chrono::milliseconds timeout=std::chrono::seconds(5)) noexcept
	make a connection to the given endpoint.

virtual int	disconnect (std::chrono::milliseconds timeout=std::chrono::seconds(5)) noexcept
	shutdown the connection.

virtual bool	needReconnection () noexcept
	check if client must reconnect.

int	reconnect (const Endpoint &endpoint, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	reconnect to the remote DNS server.

virtual ssize_t	read (char *data, size_t maxSize) noexcept
	read a DNS message.

virtual ssize_t	write (const char *data, size_t size) noexcept
	write a DNS message.

int	query (DnsPacket &packet, std::chrono::milliseconds timeout)
	serialize and send a DNS query, waiting for a response.

void	onReadable (int fd) override final
	method called when data are ready to be read on handle.

void	onClose (int fd) override final
	method called when handle is closed.

void	notify (const DnsNotify &func, const DnsPacket &packet) const noexcept
	safe way to notify DNS events.

Protected Member Functions inherited from join::EventHandler
virtual void	onEvent (int fd, uint32_t revents)
	method called when events are reported on handle.

virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.

virtual void	onError (int fd)
	method called when an error occurred on handle.

Protected Attributes
DnsMessage	_message
	DNS message codec.

Socket	_socket
	underlying socket.

std::string	_server
	remote DNS server.

uint16_t	_port
	remote DNS server port.

Reactor &	_reactor
	event loop reactor.

std::unique_ptr< char[]>	_buffer
	reception buffer.

std::unordered_map< uint16_t, std::unique_ptr< PendingRequest > >	_pending
	synchronous requests indexed by sequence number.

Mutex	_syncMutex
	protection mutex.

Static Protected Attributes
static constexpr size_t	_headerSize = 12
	DNS message header size.

Detailed Description

template<class Protocol>
class join::BasicDatagramResolver< Protocol >

basic DNS resolver over datagram socket.

Member Typedef Documentation

◆ DnsNotify

template<class Protocol >

using join::BasicDatagramResolver< Protocol >::DnsNotify = std::function<void (const DnsPacket&)>

notification callback definition.

◆ Endpoint

template<class Protocol >

using join::BasicDatagramResolver< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Socket

template<class Protocol >

using join::BasicDatagramResolver< Protocol >::Socket = typename Protocol::Socket

Constructor & Destructor Documentation

◆ BasicDatagramResolver() [1/4]

template<class Protocol >

join::BasicDatagramResolver< Protocol >::BasicDatagramResolver	(	const std::string &	server = {},
		uint16_t	port = Protocol::defaultPort,
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

◆ BasicDatagramResolver() [2/4]

template<class Protocol >

join::BasicDatagramResolver< Protocol >::BasicDatagramResolver	(	Socket &&	socket,
		const std::string &	server = {},
		uint16_t	port = Protocol::defaultPort,
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

construct the resolver instance.

Parameters

server	remote DNS server hostname or IP address.
port	remote DNS server port.
reactor	reactor instance.

◆ BasicDatagramResolver() [3/4]

template<class Protocol >

join::BasicDatagramResolver< Protocol >::BasicDatagramResolver ( const BasicDatagramResolver< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicDatagramResolver() [4/4]

template<class Protocol >

join::BasicDatagramResolver< Protocol >::BasicDatagramResolver ( BasicDatagramResolver< Protocol > && other )

delete

move constructor.

Parameters

other other object to move.

◆ ~BasicDatagramResolver()

template<class Protocol >

virtual join::BasicDatagramResolver< Protocol >::~BasicDatagramResolver ( )

inlinevirtualnoexcept

destroy instance.

Member Function Documentation

◆ connect()

template<class Protocol >

virtual int join::BasicDatagramResolver< Protocol >::connect	(	const Endpoint &	endpoint,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inlineprotectedvirtualnoexcept

make a connection to the given endpoint.

Parameters

endpoint	endpoint to connect to.
timeout	timeout duration.

Returns: 0 on success, -1 on failure.

◆ disconnect()

template<class Protocol >

virtual int join::BasicDatagramResolver< Protocol >::disconnect ( std::chrono::milliseconds timeout = std::chrono::seconds (5) )

inlineprotectedvirtualnoexcept

shutdown the connection.

Returns: 0 on success, -1 on failure.

◆ lookupAddress() [1/2]

template<class Protocol >

static IpAddress join::BasicDatagramResolver< Protocol >::lookupAddress ( const std::string & host )

inlinestatic

resolve host name using system name servers.

Parameters

host	host name to resolve.

Returns: the first resolved IP address found, wildcard address on error.

◆ lookupAddress() [2/2]

template<class Protocol >

static IpAddress join::BasicDatagramResolver< Protocol >::lookupAddress	(	const std::string &	host,
		int	family )

inlinestatic

resolve host name using system name servers.

Parameters

host	host name to resolve.
family	address family.

Returns: the first resolved IP address found, wildcard address on error.

◆ lookupAllAddress() [1/2]

template<class Protocol >

static IpAddressList join::BasicDatagramResolver< Protocol >::lookupAllAddress ( const std::string & host )

inlinestatic

resolve host name using system name servers and return all IP addresses found.

Parameters

host	host name to resolve.

Returns: the resolved IP address list, empty on error.

◆ lookupAllAddress() [2/2]

template<class Protocol >

static IpAddressList join::BasicDatagramResolver< Protocol >::lookupAllAddress	(	const std::string &	host,
		int	family )

inlinestatic

resolve host name using system name servers and return all IP addresses found.

Parameters

host	host name to resolve.
family	address family.

Returns: the resolved IP address list, empty on error.

◆ lookupAllMailExchanger()

template<class Protocol >

static ExchangerList join::BasicDatagramResolver< Protocol >::lookupAllMailExchanger ( const std::string & host )

inlinestatic

resolve all host mail exchanger.

Parameters

host	host name to resolve.

Returns: the resolved mail exchanger list.

◆ lookupAllName()

template<class Protocol >

static AliasList join::BasicDatagramResolver< Protocol >::lookupAllName ( const IpAddress & address )

inlinestatic

resolve all host address.

Parameters

address host address to resolve.

Returns: the resolved alias list.

◆ lookupAllNameServer()

template<class Protocol >

static ServerList join::BasicDatagramResolver< Protocol >::lookupAllNameServer ( const std::string & host )

inlinestatic

resolve all host name server.

Parameters

host	host name to resolve.

Returns: the resolved name server list.

◆ lookupAuthority()

template<class Protocol >

static std::string join::BasicDatagramResolver< Protocol >::lookupAuthority ( const std::string & host )

inlinestatic

resolve host start of authority name server.

Parameters

host	host name to resolve.

Returns: the start of authority name server.

◆ lookupMailExchanger()

template<class Protocol >

static std::string join::BasicDatagramResolver< Protocol >::lookupMailExchanger ( const std::string & host )

inlinestatic

resolve host mail exchanger.

Parameters

host	host name to resolve.

Returns: the first resolved mail exchanger.

◆ lookupName()

template<class Protocol >

static std::string join::BasicDatagramResolver< Protocol >::lookupName ( const IpAddress & address )

inlinestatic

resolve host address.

Parameters

address host address to resolve.

Returns: the first resolved alias.

◆ lookupNameServer()

template<class Protocol >

static std::string join::BasicDatagramResolver< Protocol >::lookupNameServer ( const std::string & host )

inlinestatic

resolve host name server.

Parameters

host	host name to resolve.

Returns: the first resolved name server.

◆ nameServers()

template<class Protocol >

static IpAddressList join::BasicDatagramResolver< Protocol >::nameServers ( )

inlinestaticnoexcept

get IP address of the currently configured name servers.

Returns: a list of configured name servers.

◆ needReconnection()

template<class Protocol >

virtual bool join::BasicDatagramResolver< Protocol >::needReconnection ( )

inlineprotectedvirtualnoexcept

check if client must reconnect.

Returns: true if reconnection is required.

◆ notify()

template<class Protocol >

void join::BasicDatagramResolver< Protocol >::notify	(	const DnsNotify &	func,
		const DnsPacket &	packet ) const

inlineprotectednoexcept

safe way to notify DNS events.

Parameters

func	function to call.
packet	DNS packet.

◆ onClose()

template<class Protocol >

void join::BasicDatagramResolver< Protocol >::onClose ( int fd )

inlinefinaloverrideprotectedvirtual

method called when handle is closed.

Parameters

fd	file descriptor.

Reimplemented from join::EventHandler.

◆ onReadable()

template<class Protocol >

void join::BasicDatagramResolver< Protocol >::onReadable ( int fd )

inlinefinaloverrideprotectedvirtual

method called when data are ready to be read on handle.

Parameters

fd	file descriptor.

Reimplemented from join::EventHandler.

◆ operator=() [1/2]

template<class Protocol >

BasicDatagramResolver & join::BasicDatagramResolver< Protocol >::operator= ( BasicDatagramResolver< Protocol > && other )

delete

move assignment operator.

Parameters

other other object to move.

Returns: a reference to the current object.

◆ operator=() [2/2]

template<class Protocol >

BasicDatagramResolver & join::BasicDatagramResolver< Protocol >::operator= ( const BasicDatagramResolver< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to copy.

Returns: a reference to the current object.

◆ query()

template<class Protocol >

int join::BasicDatagramResolver< Protocol >::query	(	DnsPacket &	packet,
		std::chrono::milliseconds	timeout )

inlineprotected

serialize and send a DNS query, waiting for a response.

Parameters

packet	DNS packet to send, filled with the response on success.
timeout	query timeout.

Returns: 0 on success, -1 on error.

◆ read()

template<class Protocol >

virtual ssize_t join::BasicDatagramResolver< Protocol >::read	(	char *	data,
		size_t	maxSize )

inlineprotectedvirtualnoexcept

read a DNS message.

Parameters

data	destination buffer.
maxSize	maximum number of bytes to read.

Returns: number of bytes read, or -1 on error.

◆ reconnect()

template<class Protocol >

int join::BasicDatagramResolver< Protocol >::reconnect	(	const Endpoint &	endpoint,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inlineprotected

reconnect to the remote DNS server.

Parameters

endpoint	endpoint to connect to.
timeout	timeout duration.

Returns: 0 on success, -1 on failure.

◆ resolveAddress() [1/2]

template<class Protocol >

IpAddress join::BasicDatagramResolver< Protocol >::resolveAddress	(	const std::string &	host,
		int	family,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name using address family.

Parameters

host	host name to resolve.
family	address family.
timeout	timeout duration (default: 5 s).

Returns: the first resolved IP address found matching address family.

◆ resolveAddress() [2/2]

template<class Protocol >

IpAddress join::BasicDatagramResolver< Protocol >::resolveAddress	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the first resolved IP address found.

◆ resolveAllAddress() [1/2]

template<class Protocol >

IpAddressList join::BasicDatagramResolver< Protocol >::resolveAllAddress	(	const std::string &	host,
		int	family,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name and return all IP addresses found.

Parameters

host	host name to resolve.
family	address family.
timeout	timeout duration (default: 5 s).

Returns: the resolved IP address list.

◆ resolveAllAddress() [2/2]

template<class Protocol >

IpAddressList join::BasicDatagramResolver< Protocol >::resolveAllAddress	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name and return all IP addresses found.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the resolved IP address list.

◆ resolveAllMailExchanger()

template<class Protocol >

ExchangerList join::BasicDatagramResolver< Protocol >::resolveAllMailExchanger	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve all host mail exchanger.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the resolved mail exchanger list.

◆ resolveAllName()

template<class Protocol >

AliasList join::BasicDatagramResolver< Protocol >::resolveAllName	(	const IpAddress &	address,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve all host address.

Parameters

address	host address to resolve.
timeout	timeout duration (default: 5 s).

Returns: the resolved alias list.

◆ resolveAllNameServer()

template<class Protocol >

ServerList join::BasicDatagramResolver< Protocol >::resolveAllNameServer	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve all host name server.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the resolved name server list.

◆ resolveAuthority()

template<class Protocol >

std::string join::BasicDatagramResolver< Protocol >::resolveAuthority	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host start of authority name server.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the start of authority name server.

◆ resolveMailExchanger()

template<class Protocol >

std::string join::BasicDatagramResolver< Protocol >::resolveMailExchanger	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host mail exchanger.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the first resolved mail exchanger.

◆ resolveName()

template<class Protocol >

std::string join::BasicDatagramResolver< Protocol >::resolveName	(	const IpAddress &	address,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host address.

Parameters

address	host address to resolve.
timeout	timeout duration (default: 5 s).

Returns: the first resolved alias.

◆ resolveNameServer()

template<class Protocol >

std::string join::BasicDatagramResolver< Protocol >::resolveNameServer	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name server.

Parameters

host	host name to resolve.
timeout	timeout duration (default: 5 s).

Returns: the first resolved name server.

◆ resolveService()

template<class Protocol >

static uint16_t join::BasicDatagramResolver< Protocol >::resolveService ( const std::string & service )

inlinestaticnoexcept

resolve service name.

Parameters

service service name to resolve (ex. "http", "ftp", "ssh" etc...).

Returns: the port resolved.

◆ write()

template<class Protocol >

virtual ssize_t join::BasicDatagramResolver< Protocol >::write	(	const char *	data,
		size_t	size )

inlineprotectedvirtualnoexcept

write a DNS message.

Parameters

data	source buffer.
size	number of bytes to write.

Returns: number of bytes written, or -1 on error.

◆ onSuccess

template<class Protocol >

DnsNotify join::BasicDatagramResolver< Protocol >::onSuccess

callback called when a lookup sequence succeed.

The documentation for this class was generated from the following files:

fabric/include/join/dns_protocol.hpp
fabric/include/join/resolver.hpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

◆ DnsNotify

◆ Endpoint

◆ Socket

Constructor & Destructor Documentation

◆ BasicDatagramResolver() [1/4]

◆ BasicDatagramResolver() [2/4]

◆ BasicDatagramResolver() [3/4]

◆ BasicDatagramResolver() [4/4]

◆ ~BasicDatagramResolver()

Member Function Documentation

◆ connect()

◆ disconnect()

◆ lookupAddress() [1/2]

◆ lookupAddress() [2/2]

◆ lookupAllAddress() [1/2]

◆ lookupAllAddress() [2/2]

◆ lookupAllMailExchanger()

◆ lookupAllName()

◆ lookupAllNameServer()

◆ lookupAuthority()

◆ lookupMailExchanger()

◆ lookupName()

◆ lookupNameServer()

◆ nameServers()

◆ needReconnection()

◆ notify()

◆ onClose()

◆ onReadable()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ query()

◆ read()

◆ reconnect()

◆ resolveAddress() [1/2]

◆ resolveAddress() [2/2]

◆ resolveAllAddress() [1/2]

◆ resolveAllAddress() [2/2]

◆ resolveAllMailExchanger()

◆ resolveAllName()

◆ resolveAllNameServer()

◆ resolveAuthority()

◆ resolveMailExchanger()

◆ resolveName()

◆ resolveNameServer()

◆ resolveService()

◆ write()

Member Data Documentation

◆ _buffer

◆ _headerSize

◆ _message

◆ _pending

◆ _port

◆ _reactor

◆ _server

◆ _socket

◆ _syncMutex

◆ onFailure

◆ onSuccess
