join::BasicProducer< Policy > Class Template Reference

shared memory producer. More...

#include <shared.hpp>

Inheritance diagram for join::BasicProducer< Policy >:

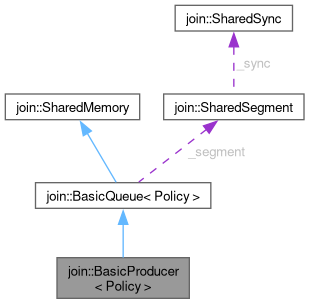

Collaboration diagram for join::BasicProducer< Policy >:

Public Member Functions
	BasicProducer (const std::string &name, uint64_t elementSize=1472, uint64_t capacity=144)
	create instance.
	BasicProducer (const BasicProducer &other)=delete
	copy constructor.
BasicProducer &	operator= (const BasicProducer &other)=delete
	copy assignment operator.
	~BasicProducer ()=default
	destroy the instance.
int	tryPush (const void *element) noexcept
	try to push element into ring buffer.
int	push (const void *element) noexcept
	push element into the ring buffer.
template<class Rep , class Period >
int	timedPush (const void *element, std::chrono::duration< Rep, Period > timeout) noexcept
	try to push element into the ring buffer until timeout expire.
uint64_t	available () const noexcept
	get the number of available slots for writing.
bool	full () const noexcept
	check if the ring buffer is full.
Public Member Functions inherited from join::BasicQueue< Policy >
	BasicQueue (const std::string &name, uint64_t elementSize=1472, uint64_t capacity=144)
	create instance.
	BasicQueue (const BasicQueue &other)=delete
	copy constructor.
BasicQueue &	operator= (const BasicQueue &other)=delete
	copy assignment operator.
virtual	~BasicQueue ()
	destroy the instance.
int	open () override
	open or create the shared memory segment.
void	close () noexcept override
	close the shared memory segment.
const void *	get (uint64_t offset=0) const override
	get a const pointer to the shared memory data region at a given offset.
void *	get (uint64_t offset=0) override
	get a pointer to the shared memory data region at a given offset.
uint64_t	elementSize () const noexcept
	get the element size of the shared memory region.
uint64_t	capacity () const noexcept
	get the capacity of the shared memory region.
uint64_t	size () const noexcept override
	get the size of the shared memory region.
Public Member Functions inherited from join::SharedMemory
	SharedMemory (const std::string &name, uint64_t size)
	create instance.
virtual	~SharedMemory ()
	destroy the instance.
bool	opened () const noexcept
	check if shared memory is opened.

Additional Inherited Members
Static Public Member Functions inherited from join::SharedMemory
static int	unlink (const std::string &name) noexcept
	destroy synchronization primitives and unlink the shared memory segment.
Protected Attributes inherited from join::BasicQueue< Policy >
Policy	_policy
	shared memory segment policy.
uint64_t	_elementSize = 0
	shared memory segment element size.
uint64_t	_capacity = 0
	shared memory segment capacity.
uint64_t	_totalSize = 0
	total shared memory size.
uint64_t	_userSize = 0
	user shared memory size.
SharedSegment *	_segment = nullptr
	shared memory segment.
Protected Attributes inherited from join::SharedMemory
std::string	_name
	shared memory name.
uint64_t	_size = 0
	shared memory size.
void *	_ptr = nullptr
	pointer to mapped shared memory.
int	_fd = -1
	shared memory file descriptor.

Detailed Description

template<typename Policy>
class join::BasicProducer< Policy >

shared memory producer.

Constructor & Destructor Documentation

BasicProducer() [1/2]

template<typename Policy >

join::BasicProducer< Policy >::BasicProducer ( const std::string & name, uint64_t elementSize = 1472, uint64_t capacity = 144 )

inline

create instance.

Parameters

name	shared memory segment name.
elementSize	shared memory segment element size.
capacity	shared memory segment capacity.

BasicProducer() [2/2]

template<typename Policy >

join::BasicProducer< Policy >::BasicProducer ( const BasicProducer< Policy > & other )

delete

copy constructor.

Parameters

other

other object to copy.

~BasicProducer()

template<typename Policy >

join::BasicProducer< Policy >::~BasicProducer ( )

default

destroy the instance.

Member Function Documentation

available()

template<typename Policy >

uint64_t join::BasicProducer< Policy >::available ( ) const

inlinenoexcept

get the number of available slots for writing.

Returns

number of slots available in the ring buffer.

full()

template<typename Policy >

bool join::BasicProducer< Policy >::full ( ) const

inlinenoexcept

check if the ring buffer is full.

Returns

true if full, false otherwise.

operator=()

template<typename Policy >

BasicProducer & join::BasicProducer< Policy >::operator= ( const BasicProducer< Policy > & other )

delete

copy assignment operator.

Parameters

other

other object to assign.

Returns

assigned object.

push()

template<typename Policy >

int join::BasicProducer< Policy >::push ( const void * element )

inlinenoexcept

push element into the ring buffer.

Parameters

element

pointer to element to push.

Returns

0 on success, -1 otherwise.

timedPush()

template<typename Policy >

template<class Rep , class Period >

int join::BasicProducer< Policy >::timedPush ( const void * element, std::chrono::duration< Rep, Period > timeout )

inlinenoexcept

try to push element into the ring buffer until timeout expire.

Parameters

element	pointer to element to push.
timeout	timeout.

Returns

0 on success, -1 otherwise.

tryPush()

template<typename Policy >

int join::BasicProducer< Policy >::tryPush ( const void * element )

inlinenoexcept

try to push element into ring buffer.

Parameters

element

pointer to element to push.

Returns

0 on success, -1 otherwise.

---

The documentation for this class was generated from the following file:

• core/include/join/shared.hpp
