mDNS peer. More...

#include <nameserver.hpp>

Inheritance diagram for join::BasicDatagramPeer< Protocol >:

[legend]

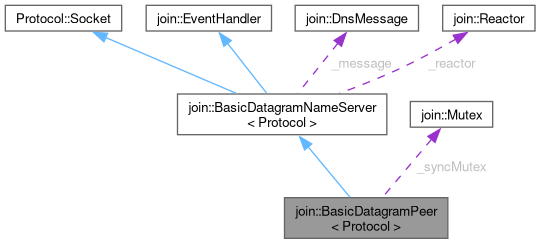

Collaboration diagram for join::BasicDatagramPeer< Protocol >:

[legend]

Classes
struct	PendingRequest
	pending synchronous request. More...

Public Types
using	Socket = typename BasicDatagramNameServer<Protocol>::Socket

using	Endpoint = typename BasicDatagramNameServer<Protocol>::Endpoint

using	DnsNotify = std::function<void (const DnsPacket&)>
	DNS notification callback type.

Public Types inherited from join::BasicDatagramNameServer< Protocol >
using	Socket = typename Protocol::Socket

using	Endpoint = typename Protocol::Endpoint

Public Member Functions
	BasicDatagramPeer (unsigned int ifindex, Reactor &reactor=ReactorThread::reactor())
	construct the mDNS peer instance.

	BasicDatagramPeer (const std::string &interface, Reactor &reactor=ReactorThread::reactor())
	construct the mDNS peer instance.

	BasicDatagramPeer (const BasicDatagramPeer &other)=delete
	copy constructor.

BasicDatagramPeer &	operator= (const BasicDatagramPeer &other)=delete
	copy assignment operator.

	BasicDatagramPeer (BasicDatagramPeer &&other)=delete
	move constructor.

BasicDatagramPeer &	operator= (BasicDatagramPeer &&other)=delete
	move assignment operator.

virtual	~BasicDatagramPeer () noexcept=default
	destroy instance.

int	bind (int family) noexcept
	bind the socket to specified address family.

int	probe (const std::vector< ResourceRecord > &records)
	probe the local network for the presence of a service.

int	announce (const std::vector< ResourceRecord > &records)
	announce the presence of a service on the local network.

int	goodbye (const std::vector< ResourceRecord > &records)
	send a goodbye message.

int	browse (const std::string &serviceType)
	browse for services on the local network.

IpAddressList	resolveAllAddress (const std::string &host, int family, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name and return all IP addresses found.

IpAddressList	resolveAllAddress (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name and return all IP addresses found.

IpAddress	resolveAddress (const std::string &host, int family, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name using address family.

IpAddress	resolveAddress (const std::string &host, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host name.

AliasList	resolveAllName (const IpAddress &address, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve all host address.

std::string	resolveName (const IpAddress &address, std::chrono::milliseconds timeout=std::chrono::seconds(5))
	resolve host address.

virtual void	onAnnouncement (const DnsPacket &packet)=0
	method called when a DNS query is received.

Public Member Functions inherited from join::BasicDatagramNameServer< Protocol >
	BasicDatagramNameServer (Reactor &reactor=ReactorThread::reactor())
	construct the name server instance.

	BasicDatagramNameServer (const BasicDatagramNameServer &other)=delete
	copy constructor.

BasicDatagramNameServer &	operator= (const BasicDatagramNameServer &other)=delete
	copy assignment operator.

	BasicDatagramNameServer (BasicDatagramNameServer &&other)=delete
	move constructor.

BasicDatagramNameServer &	operator= (BasicDatagramNameServer &&other)=delete
	move assignment operator.

virtual	~BasicDatagramNameServer () noexcept=default
	destroy instance.

virtual int	bind (const Endpoint &endpoint) noexcept override
	bind the socket to the given endpoint and register with the reactor.

virtual void	close () noexcept override
	close the socket and unregister from the reactor.

int	reply (const DnsPacket &query, const std::vector< ResourceRecord > &answers={}, const std::vector< ResourceRecord > &authorities={}, const std::vector< ResourceRecord > &additionals={}, uint16_t rcode=0)
	reply to a DNS query.

virtual void	onQuery (const DnsPacket &packet)=0
	method called when a DNS query is received.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

	EventHandler (const EventHandler &other)=default
	copy constructor.

EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.

	EventHandler (EventHandler &&other)=default
	move constructor.

EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.

virtual	~EventHandler ()=default
	destroy instance.

Public Attributes
DnsNotify	onSuccess
	callback called when a lookup sequence succeed.

DnsNotify	onFailure
	callback called when a lookup sequence failed.

Protected Member Functions
void	onReadable (int fd) override final
	method called when data are ready to be read on handle.

void	notify (const DnsNotify &func, const DnsPacket &packet) const noexcept
	safe way to notify DNS events.

int	query (DnsPacket &packet, std::chrono::milliseconds timeout)
	serialize and send a DNS query, waiting for a response.

Protected Member Functions inherited from join::BasicDatagramNameServer< Protocol >
int	send (DnsPacket &packet)
	serialize and send a DNS packet.

Protected Member Functions inherited from join::EventHandler
virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.

virtual void	onClose (int fd)
	method called when handle was closed by the peer.

virtual void	onError (int fd)
	method called when an error occurred on handle.

Protected Attributes
unsigned int	_ifindex
	interface index.

std::unordered_map< uint16_t, std::unique_ptr< PendingRequest > >	_pending
	synchronous requests indexed by sequence number.

Mutex	_syncMutex
	protection mutex.

Protected Attributes inherited from join::BasicDatagramNameServer< Protocol >
DnsMessage	_message
	DNS message codec.

Reactor &	_reactor
	event loop reactor.

std::unique_ptr< char[]>	_buffer
	reception buffer.

Additional Inherited Members
Static Protected Attributes inherited from join::BasicDatagramNameServer< Protocol >
static constexpr size_t	_headerSize = 12
	DNS message header size.

Detailed Description

template<typename Protocol>
class join::BasicDatagramPeer< Protocol >

mDNS peer.

Member Typedef Documentation

◆ DnsNotify

template<typename Protocol >

using join::BasicDatagramPeer< Protocol >::DnsNotify = std::function<void (const DnsPacket&)>

DNS notification callback type.

◆ Endpoint

template<typename Protocol >

using join::BasicDatagramPeer< Protocol >::Endpoint = typename BasicDatagramNameServer<Protocol>::Endpoint

◆ Socket

template<typename Protocol >

using join::BasicDatagramPeer< Protocol >::Socket = typename BasicDatagramNameServer<Protocol>::Socket

Constructor & Destructor Documentation

◆ BasicDatagramPeer() [1/4]

template<typename Protocol >

join::BasicDatagramPeer< Protocol >::BasicDatagramPeer	(	unsigned int	ifindex,
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

construct the mDNS peer instance.

Parameters

ifindex	interface index.
reactor	event loop reactor.

◆ BasicDatagramPeer() [2/4]

template<typename Protocol >

join::BasicDatagramPeer< Protocol >::BasicDatagramPeer	(	const std::string &	interface,
		Reactor &	reactor = ReactorThread::reactor () )

inlineexplicit

construct the mDNS peer instance.

Parameters

interface	interface name.
reactor	event loop reactor.

◆ BasicDatagramPeer() [3/4]

template<typename Protocol >

join::BasicDatagramPeer< Protocol >::BasicDatagramPeer ( const BasicDatagramPeer< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicDatagramPeer() [4/4]

template<typename Protocol >

join::BasicDatagramPeer< Protocol >::BasicDatagramPeer ( BasicDatagramPeer< Protocol > && other )

delete

move constructor.

Parameters

other other object to move.

◆ ~BasicDatagramPeer()

template<typename Protocol >

virtual join::BasicDatagramPeer< Protocol >::~BasicDatagramPeer ( )

virtualdefaultnoexcept

destroy instance.

Member Function Documentation

◆ announce()

template<typename Protocol >

int join::BasicDatagramPeer< Protocol >::announce ( const std::vector< ResourceRecord > & records )

inline

announce the presence of a service on the local network.

Parameters

records resource records to announce.

Returns: 0 on success, -1 on error.

◆ bind()

template<typename Protocol >

int join::BasicDatagramPeer< Protocol >::bind ( int family )

inlinenoexcept

bind the socket to specified address family.

Parameters

family address family.

Returns: 0 on success, -1 on failure.

◆ browse()

template<typename Protocol >

int join::BasicDatagramPeer< Protocol >::browse ( const std::string & serviceType )

inline

browse for services on the local network.

Parameters

serviceType service type to browse for (e.g. "_http._tcp.local").

Returns: 0 on success, -1 on error.

◆ goodbye()

template<typename Protocol >

int join::BasicDatagramPeer< Protocol >::goodbye ( const std::vector< ResourceRecord > & records )

inline

send a goodbye message.

Parameters

records resource records to send in goodbye message.

Returns: 0 on success, -1 on error.

◆ notify()

template<typename Protocol >

void join::BasicDatagramPeer< Protocol >::notify	(	const DnsNotify &	func,
		const DnsPacket &	packet ) const

inlineprotectednoexcept

safe way to notify DNS events.

Parameters

func	function to call.
packet	DNS packet.

◆ onAnnouncement()

template<typename Protocol >

virtual void join::BasicDatagramPeer< Protocol >::onAnnouncement ( const DnsPacket & packet )

pure virtual

method called when a DNS query is received.

Parameters

packet parsed DNS query received.

◆ onReadable()

template<typename Protocol >

void join::BasicDatagramPeer< Protocol >::onReadable ( int fd )

inlinefinaloverrideprotectedvirtual

method called when data are ready to be read on handle.

Parameters

fd	file descriptor.

Reimplemented from join::BasicDatagramNameServer< Protocol >.

◆ operator=() [1/2]

template<typename Protocol >

BasicDatagramPeer & join::BasicDatagramPeer< Protocol >::operator= ( BasicDatagramPeer< Protocol > && other )

delete

move assignment operator.

Parameters

other other object to move.

Returns: a reference to the current object.

◆ operator=() [2/2]

template<typename Protocol >

BasicDatagramPeer & join::BasicDatagramPeer< Protocol >::operator= ( const BasicDatagramPeer< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to copy.

Returns: a reference to the current object.

◆ probe()

template<typename Protocol >

int join::BasicDatagramPeer< Protocol >::probe ( const std::vector< ResourceRecord > & records )

inline

probe the local network for the presence of a service.

Parameters

records resource records to query for.

Returns: 0 on success, -1 on error.

◆ query()

template<typename Protocol >

int join::BasicDatagramPeer< Protocol >::query	(	DnsPacket &	packet,
		std::chrono::milliseconds	timeout )

inlineprotected

serialize and send a DNS query, waiting for a response.

Parameters

packet	DNS packet to send, filled with the response on success
timeout	query timeout.

Returns: 0 on success, -1 on error.

◆ resolveAddress() [1/2]

template<typename Protocol >

IpAddress join::BasicDatagramPeer< Protocol >::resolveAddress	(	const std::string &	host,
		int	family,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name using address family.

Parameters

host	host name to resolve.
family	address family.
timeout	timeout in milliseconds (default: 5000).

Returns: the first resolved IP address found matching address family.

◆ resolveAddress() [2/2]

template<typename Protocol >

IpAddress join::BasicDatagramPeer< Protocol >::resolveAddress	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name.

Parameters

host	host name to resolve.
timeout	timeout in milliseconds (default: 5000).

Returns: the first resolved IP address found.

◆ resolveAllAddress() [1/2]

template<typename Protocol >

IpAddressList join::BasicDatagramPeer< Protocol >::resolveAllAddress	(	const std::string &	host,
		int	family,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name and return all IP addresses found.

Parameters

host	host name to resolve.
family	address family.
timeout	timeout in milliseconds (default: 5000).

Returns: the resolved IP address list.

◆ resolveAllAddress() [2/2]

template<typename Protocol >

IpAddressList join::BasicDatagramPeer< Protocol >::resolveAllAddress	(	const std::string &	host,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host name and return all IP addresses found.

Parameters

host	host name to resolve.
timeout	timeout in milliseconds (default: 5000).

Returns: the resolved IP address list.

◆ resolveAllName()

template<typename Protocol >

AliasList join::BasicDatagramPeer< Protocol >::resolveAllName	(	const IpAddress &	address,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve all host address.

Parameters

address	host address to resolve.
timeout	timeout in milliseconds (default: 5000).

Returns: the resolved alias list.

◆ resolveName()

template<typename Protocol >

std::string join::BasicDatagramPeer< Protocol >::resolveName	(	const IpAddress &	address,
		std::chrono::milliseconds	timeout = std::chrono::seconds (5) )

inline

resolve host address.

Parameters

address	host address to resolve.
timeout	timeout in milliseconds (default: 5000).

Returns: the first resolved alias.

Member Data Documentation

◆ _ifindex

template<typename Protocol >

unsigned int join::BasicDatagramPeer< Protocol >::_ifindex

protected

interface index.

◆ _pending

template<typename Protocol >

std::unordered_map<uint16_t, std::unique_ptr<PendingRequest> > join::BasicDatagramPeer< Protocol >::_pending

protected

synchronous requests indexed by sequence number.

◆ _syncMutex

template<typename Protocol >

Mutex join::BasicDatagramPeer< Protocol >::_syncMutex

protected

protection mutex.

◆ onFailure

template<typename Protocol >

DnsNotify join::BasicDatagramPeer< Protocol >::onFailure

callback called when a lookup sequence failed.

◆ onSuccess

template<typename Protocol >

DnsNotify join::BasicDatagramPeer< Protocol >::onSuccess

callback called when a lookup sequence succeed.

The documentation for this class was generated from the following files:

core/include/join/protocol.hpp
fabric/include/join/nameserver.hpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ DnsNotify

◆ Endpoint

◆ Socket

Constructor & Destructor Documentation

◆ BasicDatagramPeer() [1/4]

◆ BasicDatagramPeer() [2/4]

◆ BasicDatagramPeer() [3/4]

◆ BasicDatagramPeer() [4/4]

◆ ~BasicDatagramPeer()

Member Function Documentation

◆ announce()

◆ bind()

◆ browse()

◆ goodbye()

◆ notify()

◆ onAnnouncement()

◆ onReadable()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ probe()

◆ query()

◆ resolveAddress() [1/2]

◆ resolveAddress() [2/2]

◆ resolveAllAddress() [1/2]

◆ resolveAllAddress() [2/2]

◆ resolveAllName()

◆ resolveName()

Member Data Documentation

◆ _ifindex

◆ _pending

◆ _syncMutex

◆ onFailure

◆ onSuccess
