basic DNS name server over datagram socket. More...

#include <nameserver.hpp>

Inheritance diagram for join::BasicDatagramNameServer< Protocol >:

[legend]

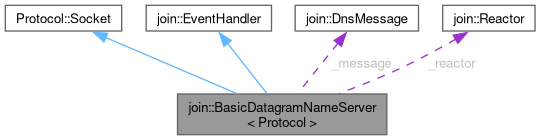

Collaboration diagram for join::BasicDatagramNameServer< Protocol >:

[legend]

Public Types
using	Socket = typename Protocol::Socket

using	Endpoint = typename Protocol::Endpoint

Public Member Functions
	BasicDatagramNameServer (Reactor &reactor=ReactorThread::reactor())
	construct the name server instance.

	BasicDatagramNameServer (const BasicDatagramNameServer &other)=delete
	copy constructor.

BasicDatagramNameServer &	operator= (const BasicDatagramNameServer &other)=delete
	copy assignment operator.

	BasicDatagramNameServer (BasicDatagramNameServer &&other)=delete
	move constructor.

BasicDatagramNameServer &	operator= (BasicDatagramNameServer &&other)=delete
	move assignment operator.

virtual	~BasicDatagramNameServer () noexcept=default
	destroy instance.

virtual int	bind (const Endpoint &endpoint) noexcept override
	bind the socket to the given endpoint and register with the reactor.

virtual void	close () noexcept override
	close the socket and unregister from the reactor.

int	reply (const DnsPacket &query, const std::vector< ResourceRecord > &answers={}, const std::vector< ResourceRecord > &authorities={}, const std::vector< ResourceRecord > &additionals={}, uint16_t rcode=0)
	reply to a DNS query.

virtual void	onQuery (const DnsPacket &packet)=0
	method called when a DNS query is received.

Public Member Functions inherited from join::EventHandler
	EventHandler ()=default
	create instance.

	EventHandler (const EventHandler &other)=default
	copy constructor.

EventHandler &	operator= (const EventHandler &other)=default
	copy assignment operator.

	EventHandler (EventHandler &&other)=default
	move constructor.

EventHandler &	operator= (EventHandler &&other)=default
	move assignment operator.

virtual	~EventHandler ()=default
	destroy instance.

Protected Member Functions
virtual void	onReadable (int fd) override
	method called when data are ready to be read on handle.

int	send (DnsPacket &packet)
	serialize and send a DNS packet.

Protected Member Functions inherited from join::EventHandler
virtual void	onWriteable (int fd)
	method called when data are ready to be written on handle.

virtual void	onClose (int fd)
	method called when handle was closed by the peer.

virtual void	onError (int fd)
	method called when an error occurred on handle.

Protected Attributes
DnsMessage	_message
	DNS message codec.

Reactor &	_reactor
	event loop reactor.

std::unique_ptr< char[]>	_buffer
	reception buffer.

Static Protected Attributes
static constexpr size_t	_headerSize = 12
	DNS message header size.

Detailed Description

template<typename Protocol>
class join::BasicDatagramNameServer< Protocol >

basic DNS name server over datagram socket.

Member Typedef Documentation

◆ Endpoint

template<typename Protocol >

using join::BasicDatagramNameServer< Protocol >::Endpoint = typename Protocol::Endpoint

◆ Socket

template<typename Protocol >

using join::BasicDatagramNameServer< Protocol >::Socket = typename Protocol::Socket

Constructor & Destructor Documentation

◆ BasicDatagramNameServer() [1/3]

template<typename Protocol >

join::BasicDatagramNameServer< Protocol >::BasicDatagramNameServer ( Reactor & reactor = ReactorThread::reactor () )

inlineexplicit

construct the name server instance.

Parameters

reactor event loop reactor.

◆ BasicDatagramNameServer() [2/3]

template<typename Protocol >

join::BasicDatagramNameServer< Protocol >::BasicDatagramNameServer ( const BasicDatagramNameServer< Protocol > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicDatagramNameServer() [3/3]

template<typename Protocol >

join::BasicDatagramNameServer< Protocol >::BasicDatagramNameServer ( BasicDatagramNameServer< Protocol > && other )

delete

move constructor.

Parameters

other other object to move.

◆ ~BasicDatagramNameServer()

template<typename Protocol >

virtual join::BasicDatagramNameServer< Protocol >::~BasicDatagramNameServer ( )

virtualdefaultnoexcept

destroy instance.

Member Function Documentation

◆ bind()

template<typename Protocol >

virtual int join::BasicDatagramNameServer< Protocol >::bind ( const Endpoint & endpoint )

inlineoverridevirtualnoexcept

bind the socket to the given endpoint and register with the reactor.

Parameters

endpoint endpoint to bind to.

Returns: 0 on success, -1 on failure.

◆ close()

template<typename Protocol >

virtual void join::BasicDatagramNameServer< Protocol >::close ( )

inlineoverridevirtualnoexcept

close the socket and unregister from the reactor.

◆ onQuery()

template<typename Protocol >

virtual void join::BasicDatagramNameServer< Protocol >::onQuery ( const DnsPacket & packet )

pure virtual

method called when a DNS query is received.

Parameters

packet parsed DNS query received.

◆ onReadable()

template<typename Protocol >

virtual void join::BasicDatagramNameServer< Protocol >::onReadable ( int fd )

inlineoverrideprotectedvirtual

method called when data are ready to be read on handle.

Parameters

fd	file descriptor.

Reimplemented from join::EventHandler.

Reimplemented in join::BasicDatagramPeer< Protocol >.

◆ operator=() [1/2]

template<typename Protocol >

BasicDatagramNameServer & join::BasicDatagramNameServer< Protocol >::operator= ( BasicDatagramNameServer< Protocol > && other )

delete

move assignment operator.

Parameters

other other object to move.

Returns: a reference to the current object.

◆ operator=() [2/2]

template<typename Protocol >

BasicDatagramNameServer & join::BasicDatagramNameServer< Protocol >::operator= ( const BasicDatagramNameServer< Protocol > & other )

delete

copy assignment operator.

Parameters

other other object to copy.

Returns: a reference to the current object.

◆ reply()

template<typename Protocol >

int join::BasicDatagramNameServer< Protocol >::reply	(	const DnsPacket &	query,
		const std::vector< ResourceRecord > &	answers = {},
		const std::vector< ResourceRecord > &	authorities = {},
		const std::vector< ResourceRecord > &	additionals = {},
		uint16_t	rcode = 0 )

inline

reply to a DNS query.

Parameters

query	original query packet.
answers	answer records.
authorities	authority records.
additionals	additional records.
rcode	response code (default: 0 = no error).

Returns: 0 on success, -1 on error.

◆ send()

template<typename Protocol >

int join::BasicDatagramNameServer< Protocol >::send ( DnsPacket & packet )

inlineprotected

serialize and send a DNS packet.

Parameters

packet DNS packet to send.

Returns: 0 on success, -1 on error.

Member Data Documentation

◆ _buffer

template<typename Protocol >

std::unique_ptr<char[]> join::BasicDatagramNameServer< Protocol >::_buffer

protected

reception buffer.

◆ _headerSize

template<typename Protocol >

size_t join::BasicDatagramNameServer< Protocol >::_headerSize = 12

staticconstexprprotected

DNS message header size.

◆ _message

template<typename Protocol >

DnsMessage join::BasicDatagramNameServer< Protocol >::_message

protected

DNS message codec.

◆ _reactor

template<typename Protocol >

Reactor& join::BasicDatagramNameServer< Protocol >::_reactor

protected

event loop reactor.

The documentation for this class was generated from the following files:

core/include/join/protocol.hpp
fabric/include/join/nameserver.hpp
