join::BasicConsumer< Policy > Class Template Reference

shared memory consumer. More...

#include <shared.hpp>

Inheritance diagram for join::BasicConsumer< Policy >:

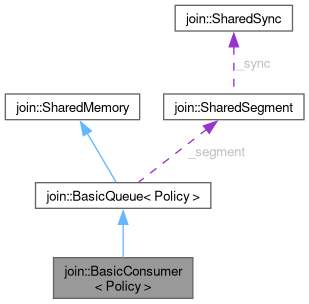

Collaboration diagram for join::BasicConsumer< Policy >:

Public Member Functions
	BasicConsumer (const std::string &name, uint64_t elementSize=1472, uint64_t capacity=144)
	create instance.
	BasicConsumer (const BasicConsumer &other)=delete
	copy constructor.
BasicConsumer &	operator= (const BasicConsumer &other)=delete
	copy assignment operator.
	~BasicConsumer ()=default
	destroy the instance.
int	tryPop (void *element) noexcept
	try to pop element from the ring buffer.
int	pop (void *element) noexcept
	pop element from the ring buffer.
template<class Rep , class Period >
int	timedPop (void *element, std::chrono::duration< Rep, Period > timeout) noexcept
	try to pop element from the ring buffer until timeout expire.
uint64_t	pending () const noexcept
	get the number of pending elements for reading.
bool	empty () const noexcept
	check if the ring buffer is empty.
Public Member Functions inherited from join::BasicQueue< Policy >
	BasicQueue (const std::string &name, uint64_t elementSize=1472, uint64_t capacity=144)
	create instance.
	BasicQueue (const BasicQueue &other)=delete
	copy constructor.
BasicQueue &	operator= (const BasicQueue &other)=delete
	copy assignment operator.
virtual	~BasicQueue ()
	destroy the instance.
int	open () override
	open or create the shared memory segment.
void	close () noexcept override
	close the shared memory segment.
const void *	get (uint64_t offset=0) const override
	get a const pointer to the shared memory data region at a given offset.
void *	get (uint64_t offset=0) override
	get a pointer to the shared memory data region at a given offset.
uint64_t	elementSize () const noexcept
	get the element size of the shared memory region.
uint64_t	capacity () const noexcept
	get the capacity of the shared memory region.
uint64_t	size () const noexcept override
	get the size of the shared memory region.
Public Member Functions inherited from join::SharedMemory
	SharedMemory (const std::string &name, uint64_t size)
	create instance.
virtual	~SharedMemory ()
	destroy the instance.
bool	opened () const noexcept
	check if shared memory is opened.

Additional Inherited Members
Static Public Member Functions inherited from join::SharedMemory
static int	unlink (const std::string &name) noexcept
	destroy synchronization primitives and unlink the shared memory segment.
Protected Attributes inherited from join::BasicQueue< Policy >
Policy	_policy
	shared memory segment policy.
uint64_t	_elementSize = 0
	shared memory segment element size.
uint64_t	_capacity = 0
	shared memory segment capacity.
uint64_t	_totalSize = 0
	total shared memory size.
uint64_t	_userSize = 0
	user shared memory size.
SharedSegment *	_segment = nullptr
	shared memory segment.
Protected Attributes inherited from join::SharedMemory
std::string	_name
	shared memory name.
uint64_t	_size = 0
	shared memory size.
void *	_ptr = nullptr
	pointer to mapped shared memory.
int	_fd = -1
	shared memory file descriptor.

Detailed Description

template<typename Policy>
class join::BasicConsumer< Policy >

shared memory consumer.

Constructor & Destructor Documentation

BasicConsumer() [1/2]

template<typename Policy >

join::BasicConsumer< Policy >::BasicConsumer ( const std::string & name, uint64_t elementSize = 1472, uint64_t capacity = 144 )

inline

create instance.

Parameters

name	shared memory segment name.
elementSize	shared memory segment element size.
capacity	shared memory segment capacity.

BasicConsumer() [2/2]

template<typename Policy >

join::BasicConsumer< Policy >::BasicConsumer ( const BasicConsumer< Policy > & other )

delete

copy constructor.

Parameters

other

other object to copy.

~BasicConsumer()

template<typename Policy >

join::BasicConsumer< Policy >::~BasicConsumer ( )

default

destroy the instance.

Member Function Documentation

empty()

template<typename Policy >

bool join::BasicConsumer< Policy >::empty ( ) const

inlinenoexcept

check if the ring buffer is empty.

Returns

true if empty, false otherwise.

operator=()

template<typename Policy >

BasicConsumer & join::BasicConsumer< Policy >::operator= ( const BasicConsumer< Policy > & other )

delete

copy assignment operator.

Parameters

other

other object to assign.

Returns

assigned object.

pending()

template<typename Policy >

uint64_t join::BasicConsumer< Policy >::pending ( ) const

inlinenoexcept

get the number of pending elements for reading.

Returns

number of elements pending in the ring buffer.

pop()

template<typename Policy >

int join::BasicConsumer< Policy >::pop ( void * element )

inlinenoexcept

pop element from the ring buffer.

Parameters

element

pointer to output element.

Returns

0 on success, -1 otherwise.

timedPop()

template<typename Policy >

template<class Rep , class Period >

int join::BasicConsumer< Policy >::timedPop ( void * element, std::chrono::duration< Rep, Period > timeout )

inlinenoexcept

try to pop element from the ring buffer until timeout expire.

Parameters

element	pointer to output element.
timeout	timeout.

Returns

0 on success, -1 otherwise.

tryPop()

template<typename Policy >

int join::BasicConsumer< Policy >::tryPop ( void * element )

inlinenoexcept

try to pop element from the ring buffer.

Parameters

element

pointer to output element.

Returns

0 on success, -1 otherwise.

---

The documentation for this class was generated from the following file:

• core/include/join/shared.hpp
