asynchronous datagram socket class. More...

#include <async_datagram_socket.hpp>

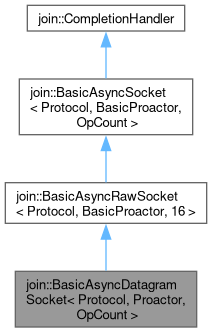

Inheritance diagram for join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >:

[legend]

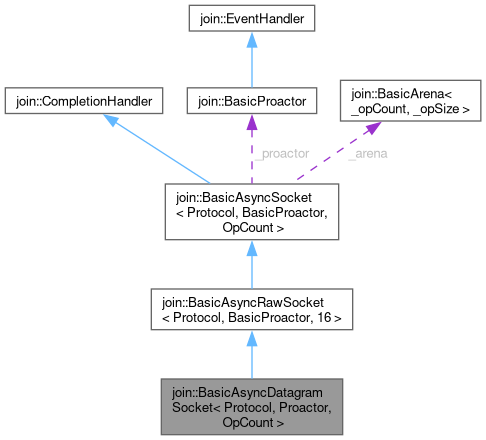

Collaboration diagram for join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >:

[legend]

Public Types
using	Socket = typename Protocol::Socket

using	Endpoint = typename Protocol::Endpoint

using	AsyncRead = BasicAsyncRead<Protocol, Proactor>

using	AsyncWrite = BasicAsyncWrite<Protocol, Proactor>

using	ReadFromHandler = typename AsyncRead::ReadFrom

using	WriteHandler = typename AsyncWrite::Write

Public Types inherited from join::BasicAsyncRawSocket< Protocol, BasicProactor, 16 >
using	Socket

using	Endpoint

using	Option

using	AsyncRead

using	AsyncWrite

using	ReadHandler

using	ReadFromHandler

using	ConnectHandler

using	WriteHandler

Public Types inherited from join::BasicAsyncSocket< Protocol, BasicProactor, OpCount >
using	Socket

using	Endpoint

using	AsyncWait

using	WaitHandler

using	OpArena

Public Member Functions
	BasicAsyncDatagramSocket (Proactor &proactor=ProactorThread::proactor())
	create the socket instance.

	BasicAsyncDatagramSocket (int ttl, Proactor &proactor=ProactorThread::proactor())
	create the socket instance specifying the time to live.

	BasicAsyncDatagramSocket (Socket &&sock, Proactor &proactor=ProactorThread::proactor())
	create the socket instance adopting an already opened socket.

	BasicAsyncDatagramSocket (const BasicAsyncDatagramSocket &other)=delete
	copy constructor.

BasicAsyncDatagramSocket &	operator= (const BasicAsyncDatagramSocket &other)=delete
	copy assignment operator.

	BasicAsyncDatagramSocket (BasicAsyncDatagramSocket &&other) noexcept=default
	move constructor.

BasicAsyncDatagramSocket &	operator= (BasicAsyncDatagramSocket &&other) noexcept=default
	move assignment operator.

int	connect (const Endpoint &endpoint) noexcept
	assign the default remote endpoint for this socket.

int	disconnect () noexcept
	remove the default remote endpoint.

ssize_t	asyncReadFrom (char *data, size_t maxSize, Endpoint &endpoint, ReadFromHandler handler, bool flush=true, bool link=false) noexcept
	start an asynchronous read, reporting the endpoint the data are coming from.

ssize_t	asyncReadFromMulti (uint16_t group, ReadFromHandler handler, bool flush=true) noexcept
	start an asynchronous multishot read, reporting the endpoint the data are coming from.

ssize_t	asyncWriteTo (const char *data, size_t size, Endpoint &endpoint, WriteHandler handler, bool flush=true, bool link=false) noexcept
	start an asynchronous write to the given endpoint.

const Endpoint &	remoteEndpoint () const noexcept
	determine the remote endpoint associated with this socket.

bool	connected () const noexcept
	check if the socket is connected.

int	mtu () const noexcept
	get socket mtu.

int	ttl () const noexcept
	returns the Time-To-Live value.

Public Member Functions inherited from join::BasicAsyncRawSocket< Protocol, BasicProactor, 16 >
	BasicAsyncRawSocket (BasicProactor &proactor=ProactorThread::proactor())
	create the socket instance.

	BasicAsyncRawSocket (Socket &&sock, BasicProactor &proactor=ProactorThread::proactor())
	create the socket instance adopting an already opened socket.

	BasicAsyncRawSocket (const BasicAsyncRawSocket &other)=delete
	copy constructor.

	BasicAsyncRawSocket (BasicAsyncRawSocket &&other) noexcept
	move constructor.

BasicAsyncRawSocket &	operator= (const BasicAsyncRawSocket &other)=delete
	copy assignment operator.

BasicAsyncRawSocket &	operator= (BasicAsyncRawSocket &&other) noexcept
	move assignment operator.

	~BasicAsyncRawSocket ()
	destroy the socket instance.

int	bind (const Endpoint &endpoint) noexcept
	assign the specified endpoint to the socket.

int	bindToDevice (const std::string &device) noexcept
	assign the specified device to the socket.

int	canRead () const noexcept
	get the number of readable bytes.

ssize_t	asyncRead (char *data, size_t maxSize, ReadHandler handler, bool flush=true, bool link=false) noexcept
	start an asynchronous read.

ssize_t	asyncReadMulti (uint16_t group, ReadHandler handler, bool flush=true) noexcept
	start an asynchronous multishot read, staying armed until cancelled or failed.

ssize_t	asyncWrite (const char *data, size_t size, WriteHandler handler, bool flush=true, bool link=false) noexcept
	start an asynchronous write.

int	cancelConnect () noexcept
	cancel the connect operation in flight, if any.

int	setOption (Option option, int value) noexcept
	set the given option to the given value.

Public Member Functions inherited from join::BasicAsyncSocket< Protocol, BasicProactor, OpCount >
BasicAsyncSocket &	operator= (const BasicAsyncSocket &other)=delete
	copy assignment operator.

BasicAsyncSocket &	operator= (BasicAsyncSocket &&other) noexcept
	move assignment operator.

	~BasicAsyncSocket ()
	destroy the socket instance.

int	open (const Protocol &protocol=Protocol()) noexcept
	open socket using the given protocol.

void	close () noexcept
	close the socket, cancelling the operations in flight.

int	registerBufferRing (uint16_t group, LocalMem::Allocator< Count, Size > &arena)
	register a provided buffer ring on the proactor driving this socket.

int	unregisterBufferRing (uint16_t group)
	unregister a provided buffer ring from the proactor driving this socket.

ssize_t	asyncWait (bool wantRead, bool wantWrite, WaitHandler handler, bool flush=true) noexcept
	start an asynchronous wait for the socket to become ready in one direction.

ssize_t	asyncWaitMulti (bool wantRead, bool wantWrite, WaitHandler handler, bool flush=true) noexcept
	start an asynchronous multishot wait, staying armed until cancelled or failed.

int	cancel (size_t index) noexcept
	cancel the operation stored at the given index, if in flight.

Endpoint	localEndpoint () const noexcept
	determine the local endpoint associated with this socket.

bool	opened () const noexcept
	check if the socket is opened.

int	family () const noexcept
	get address family.

int	type () const noexcept
	get the protocol communication semantic.

int	protocol () const noexcept
	get socket protocol.

int	handle () const noexcept
	get socket native handle.

Public Member Functions inherited from join::CompletionHandler
	CompletionHandler ()=default
	create instance.

	CompletionHandler (const CompletionHandler &other)=default
	copy constructor.

CompletionHandler &	operator= (const CompletionHandler &other)=default
	copy assignment operator.

	CompletionHandler (CompletionHandler &&other)=default
	move constructor.

CompletionHandler &	operator= (CompletionHandler &&other)=default
	move assignment operator.

virtual	~CompletionHandler ()=default
	destroy instance.

Additional Inherited Members
Static Public Attributes inherited from join::BasicAsyncSocket< Protocol, BasicProactor, OpCount >
static constexpr size_t	_opCount
	number of operations in flight.

static constexpr size_t	_opSize
	size of an operation slot.

Protected Member Functions inherited from join::BasicAsyncRawSocket< Protocol, BasicProactor, 16 >
void	dispatch (IoOperation &op, const std::error_code &code, size_t size) noexcept override
	invoke the completion handler of the given operation, then release it.

void	completeConnect (AsyncWrite *connect, const std::error_code &code) noexcept
	invoke the connect completion handler.

void	completeRead (AsyncRead *read, const std::error_code &code, size_t size) noexcept
	invoke the read completion handler.

void	completeWrite (AsyncWrite *write, const std::error_code &code, size_t size) noexcept
	invoke the write completion handler.

AsyncRead *	allocateRead () noexcept
	allocate a read operation in the arena.

AsyncWrite *	allocateWrite () noexcept
	allocate a write operation in the arena.

Protected Member Functions inherited from join::BasicAsyncSocket< Protocol, BasicProactor, OpCount >
	BasicAsyncSocket (BasicProactor &proactor=ProactorThread::proactor())
	create the socket instance.

	BasicAsyncSocket (Socket &&sock, BasicProactor &proactor=ProactorThread::proactor())
	create the socket instance adopting an already opened socket.

	BasicAsyncSocket (const BasicAsyncSocket &other)=delete
	copy constructor.

	BasicAsyncSocket (BasicAsyncSocket &&other) noexcept
	move constructor.

void	onComplete (IoOperation &op, int result) override
	method called when an operation completes.

void	onCancel (IoOperation &op, int result) override
	method called when an operation is cancelled.

void	completeWait (AsyncWait *wait, const std::error_code &code, size_t revents) noexcept
	invoke the wait completion handler.

Op *	allocateOp () noexcept
	allocate an operation in the arena.

void	releaseOp (Op *operation) noexcept
	return an operation to the arena.

void	suspendAll () noexcept
	suspend every operation in flight.

void	resumeAll () noexcept
	resume every suspended operation, redirecting it to this handler.

void	cancelAll () noexcept
	cancel every operation in flight.

bool	pendingAny () const noexcept
	check if at least one operation is in flight or completing.

int	cancelOp (IoOperation *op) noexcept
	cancel the given operation, if in flight.

bool	inFlight (const IoOperation &op) const noexcept
	check if an operation is in flight.

bool	pending (const IoOperation &op) const noexcept
	check if an operation is in flight or completing.

Protected Member Functions inherited from join::CompletionHandler
Protected Attributes inherited from join::BasicAsyncSocket< Protocol, BasicProactor, OpCount >
BasicProactor *	_proactor
	proactor driving the operations.

Socket	_socket
	underlying synchronous socket.

OpArena	_arena
	operations arena.

std::array< std::atomic< IoOperation * >, _opCount >	_ops
	operations in flight.

Detailed Description

template<class Protocol, class Proactor = BasicProactor, size_t OpCount = 16>
class join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >

asynchronous datagram socket class.

Member Typedef Documentation

◆ AsyncRead

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

using join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::AsyncRead = BasicAsyncRead<Protocol, Proactor>

◆ AsyncWrite

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

using join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::AsyncWrite = BasicAsyncWrite<Protocol, Proactor>

◆ Endpoint

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

using join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::Endpoint = typename Protocol::Endpoint

◆ ReadFromHandler

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

using join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::ReadFromHandler = typename AsyncRead::ReadFrom

◆ Socket

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

using join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::Socket = typename Protocol::Socket

◆ WriteHandler

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

using join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::WriteHandler = typename AsyncWrite::Write

Constructor & Destructor Documentation

◆ BasicAsyncDatagramSocket() [1/5]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::BasicAsyncDatagramSocket ( Proactor & proactor = ProactorThread::proactor () )

inlineexplicit

create the socket instance.

Parameters

proactor proactor driving the operations.

◆ BasicAsyncDatagramSocket() [2/5]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::BasicAsyncDatagramSocket	(	int	ttl,
		Proactor &	proactor = ProactorThread::proactor () )

inlineexplicit

create the socket instance specifying the time to live.

Parameters

ttl	packet time to live.
proactor	proactor driving the operations.

◆ BasicAsyncDatagramSocket() [3/5]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::BasicAsyncDatagramSocket	(	Socket &&	sock,
		Proactor &	proactor = ProactorThread::proactor () )

inlineexplicit

create the socket instance adopting an already opened socket.

Parameters

sock	socket to adopt.
proactor	proactor driving the operations.

◆ BasicAsyncDatagramSocket() [4/5]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::BasicAsyncDatagramSocket ( const BasicAsyncDatagramSocket< Protocol, Proactor, OpCount > & other )

delete

copy constructor.

Parameters

other other object to copy.

◆ BasicAsyncDatagramSocket() [5/5]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::BasicAsyncDatagramSocket ( BasicAsyncDatagramSocket< Protocol, Proactor, OpCount > && other )

defaultnoexcept

move constructor.

Parameters

other other object to move.

Member Function Documentation

◆ asyncReadFrom()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

ssize_t join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::asyncReadFrom	(	char *	data,
		size_t	maxSize,
		Endpoint &	endpoint,
		ReadFromHandler	handler,
		bool	flush = true,
		bool	link = false )

inlinenoexcept

start an asynchronous read, reporting the endpoint the data are coming from.

Parameters

data	buffer used to store the data received, valid until the handler is invoked.
maxSize	maximum number of bytes to read.
endpoint	endpoint from where data are coming, valid until the handler is invoked.
handler	handler invoked on completion.
flush	flush the submission queue.
link	link this operation to the next one submitted.

Returns: index of the operation on success, -1 on failure.

◆ asyncReadFromMulti()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

ssize_t join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::asyncReadFromMulti	(	uint16_t	group,
		ReadFromHandler	handler,
		bool	flush = true )

inlinenoexcept

start an asynchronous multishot read, reporting the endpoint the data are coming from.

Parameters

group	provided buffer group to receive into, registered on the proactor.
handler	handler invoked on each completion, buffer and endpoint valid during the call only.
flush	flush the submission queue.

Returns: index of the operation on success, -1 on failure.

◆ asyncWriteTo()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

ssize_t join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::asyncWriteTo	(	const char *	data,
		size_t	size,
		Endpoint &	endpoint,
		WriteHandler	handler,
		bool	flush = true,
		bool	link = false )

inlinenoexcept

start an asynchronous write to the given endpoint.

Parameters

data	data buffer to send, valid until the handler is invoked.
size	number of bytes to write.
endpoint	endpoint where to write the data, valid until the handler is invoked.
handler	handler invoked on completion.
flush	flush the submission queue.
link	link this operation to the next one submitted.

Returns: index of the operation on success, -1 on failure.

◆ connect()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

int join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::connect ( const Endpoint & endpoint )

inlinenoexcept

assign the default remote endpoint for this socket.

Parameters

endpoint endpoint to assign.

Returns: 0 on success, -1 on failure.

◆ connected()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

bool join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::connected ( ) const

inlinenoexcept

check if the socket is connected.

Returns: true if connected, false otherwise.

◆ disconnect()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

int join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::disconnect ( )

inlinenoexcept

remove the default remote endpoint.

Returns: 0 on success, -1 on failure.

◆ mtu()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

int join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::mtu ( ) const

inlinenoexcept

get socket mtu.

Returns: mtu on success, -1 on failure.

◆ operator=() [1/2]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

BasicAsyncDatagramSocket & join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::operator= ( BasicAsyncDatagramSocket< Protocol, Proactor, OpCount > && other )

defaultnoexcept

move assignment operator.

Parameters

other other object to assign.

Returns: assigned object.

◆ operator=() [2/2]

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

BasicAsyncDatagramSocket & join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::operator= ( const BasicAsyncDatagramSocket< Protocol, Proactor, OpCount > & other )

delete

copy assignment operator.

Parameters

other other object to assign.

Returns: assigned object.

◆ remoteEndpoint()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

const Endpoint & join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::remoteEndpoint ( ) const

inlinenoexcept

determine the remote endpoint associated with this socket.

Returns: remote endpoint.

◆ ttl()

template<class Protocol , class Proactor = BasicProactor, size_t OpCount = 16>

int join::BasicAsyncDatagramSocket< Protocol, Proactor, OpCount >::ttl ( ) const

inlinenoexcept

returns the Time-To-Live value.

Returns: the Time-To-Live value.

The documentation for this class was generated from the following files:

core/include/join/async_datagram_socket.hpp
core/include/join/protocol.hpp

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AsyncRead

◆ AsyncWrite

◆ Endpoint

◆ ReadFromHandler

◆ Socket

◆ WriteHandler

Constructor & Destructor Documentation

◆ BasicAsyncDatagramSocket() [1/5]

◆ BasicAsyncDatagramSocket() [2/5]

◆ BasicAsyncDatagramSocket() [3/5]

◆ BasicAsyncDatagramSocket() [4/5]

◆ BasicAsyncDatagramSocket() [5/5]

Member Function Documentation

◆ asyncReadFrom()

◆ asyncReadFromMulti()

◆ asyncWriteTo()

◆ connect()

◆ connected()

◆ disconnect()

◆ mtu()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ remoteEndpoint()

◆ ttl()
