Describes a single asynchronous operation submitted to the Proactor. More...

#include <io_operation.hpp>

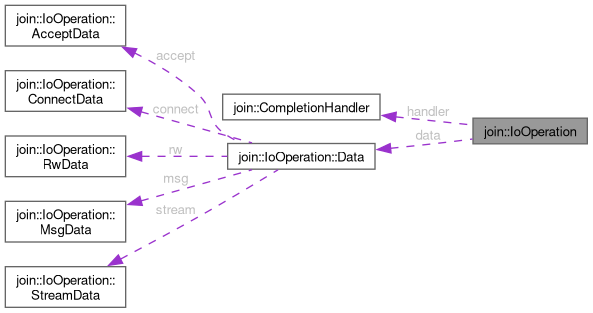

Collaboration diagram for join::IoOperation:

[legend]

Classes
struct	AcceptData
	payload for accept. More...

struct	ConnectData
	payload for connect. More...

union	Data

struct	MsgData
	payload for sendmsg / recvmsg. More...

struct	PollData
	payload for poll. More...

struct	RwData
	payload for read / read fixed / write / write fixed. More...

struct	StreamData
	payload for recv / send. More...

Public Types
enum class	State : uint8_t { Idle , Submitted , Busy , Suspended }
	operation lifecycle state. More...

enum class	Opcode : uint8_t { Poll , Accept , Connect , Read , Write , ReadFixed , WriteFixed , RecvMsg , SendMsg , Recv , Send }
	operation code. More...

Public Member Functions
	IoOperation ()=default
	default constructor.

	IoOperation (const IoOperation &other) noexcept
	copy constructor.

IoOperation &	operator= (const IoOperation &other) noexcept
	copy assignment operator.

int	fd () const noexcept
	return the file descriptor associated with this operation.

Static Public Member Functions
static IoOperation	makePoll (int fd, uint32_t events, CompletionHandler *handler) noexcept
	build a poll operation.

static IoOperation	makePollMulti (int fd, uint32_t events, CompletionHandler *handler) noexcept
	build a multishot poll operation, staying armed until cancelled or failed.

static IoOperation	makeAccept (int fd, sockaddr addr, socklen_t addrlen, int flags, CompletionHandler *handler) noexcept
	build an accept operation.

static IoOperation	makeAcceptMulti (int fd, int flags, CompletionHandler *handler) noexcept
	build a multishot accept operation.

static IoOperation	makeConnect (int fd, const sockaddr addr, socklen_t addrlen, CompletionHandler handler) noexcept
	build a connect operation.

static IoOperation	makeRead (int fd, void buf, uint32_t len, CompletionHandler handler, bool linked=false) noexcept
	build a regular read operation.

static IoOperation	makeWrite (int fd, const void buf, uint32_t len, CompletionHandler handler, bool linked=false) noexcept
	build a regular write operation.

static IoOperation	makeReadFixed (int fd, void buf, uint32_t len, uint16_t index, CompletionHandler handler, bool linked=false) noexcept
	build a fixed-buffer read operation.

static IoOperation	makeWriteFixed (int fd, const void buf, uint32_t len, uint16_t index, CompletionHandler handler, bool linked=false) noexcept
	build a fixed-buffer write operation.

static IoOperation	makeRecvmsg (int fd, msghdr msg, int flags, CompletionHandler handler, bool linked=false) noexcept
	build a receive-message operation.

static IoOperation	makeRecvmsgMulti (int fd, uint16_t group, msghdr msg, int flags, CompletionHandler handler) noexcept
	build a multishot receive-message operation.

static IoOperation	makeSendmsg (int fd, const msghdr msg, int flags, CompletionHandler handler, bool linked=false) noexcept
	build a send-message operation.

static IoOperation	makeRecv (int fd, void buf, uint32_t len, int flags, CompletionHandler handler, bool linked=false) noexcept
	build a receive operation.

static IoOperation	makeRecvMulti (int fd, uint16_t group, int flags, CompletionHandler *handler) noexcept
	build a multishot receive operation.

static IoOperation	makeSend (int fd, const void buf, uint32_t len, int flags, CompletionHandler handler, bool linked=false) noexcept
	build a send operation.

Public Attributes
uint8_t	code = 0
	operation code.

std::atomic< State >	state {State::Idle}
	operation state.

State	resume {State::Idle}
	state to restore when the current hold is released.

uint32_t	index = 0
	index of this operation in the proactor pending ops (io_uring only).

bool	linked = false
	link this SQE to the next one (next executes only if this succeeds, io_uring only).

bool	multishot = false
	rearm the operation after each completion.

bool	more = false
	true while a multishot operation stays armed.

uint16_t	group = 0
	provided buffer group.

CompletionHandler *	handler = nullptr
	handler to dispatch to on completion.

Data	data = {}
	operation code specific payload.

IoRingBuffer *	ring = nullptr
	buffer ring bound to this operation.

Detailed Description

Describes a single asynchronous operation submitted to the Proactor.

Member Enumeration Documentation

◆ Opcode

enum class join::IoOperation::Opcode : uint8_t

strong

operation code.

Enumerator
Poll	wait for readiness on a file descriptor.
Accept	accept an incoming connection.
Connect	initiate an outgoing connection.
Read	read from a file descriptor.
Write	write to a file descriptor.
ReadFixed	read using a registered buffer.
WriteFixed	write using a registered buffer.
RecvMsg	receive a message with ancillary data.
SendMsg	send a message with ancillary data.
Recv	receive data from a socket.
Send	send data on a socket.

◆ State

enum class join::IoOperation::State : uint8_t

strong

operation lifecycle state.

Enumerator
Idle	operation is not in flight.
Submitted	operation is in flight.
Busy	a completion is in progress.
Suspended	operation has been suspended.

Constructor & Destructor Documentation

◆ IoOperation() [1/2]

join::IoOperation::IoOperation ( )

default

default constructor.

◆ IoOperation() [2/2]

IoOperation::IoOperation ( const IoOperation & other )

noexcept

copy constructor.

Parameters

other other object to copy.

Member Function Documentation

◆ fd()

int IoOperation::fd ( ) const

noexcept

return the file descriptor associated with this operation.

Returns: file descriptor, or -1 if opcode is unknown.

◆ makeAccept()

IoOperation IoOperation::makeAccept	(	int	fd,
		sockaddr *	addr,
		socklen_t *	addrlen,
		int	flags,
		CompletionHandler *	handler )

staticnoexcept

build an accept operation.

Parameters

fd	listening socket file descriptor.
addr	peer address.
addrlen	peer address length.
flags	accept flags.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makeAcceptMulti()

IoOperation IoOperation::makeAcceptMulti	(	int	fd,
		int	flags,
		CompletionHandler *	handler )

staticnoexcept

build a multishot accept operation.

Parameters

fd	listening socket file descriptor.
flags	accept flags.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makeConnect()

IoOperation IoOperation::makeConnect	(	int	fd,
		const sockaddr *	addr,
		socklen_t	addrlen,
		CompletionHandler *	handler )

staticnoexcept

build a connect operation.

Parameters

fd	socket file descriptor.
addr	remote address.
addrlen	remote address length.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makePoll()

IoOperation IoOperation::makePoll	(	int	fd,
		uint32_t	events,
		CompletionHandler *	handler )

staticnoexcept

build a poll operation.

Parameters

fd	file descriptor to watch.
events	requested events, POLLIN or POLLOUT.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makePollMulti()

IoOperation IoOperation::makePollMulti	(	int	fd,
		uint32_t	events,
		CompletionHandler *	handler )

staticnoexcept

build a multishot poll operation, staying armed until cancelled or failed.

Parameters

fd	file descriptor to watch.
events	requested events, POLLIN or POLLOUT.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makeRead()

IoOperation IoOperation::makeRead	(	int	fd,
		void *	buf,
		uint32_t	len,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a regular read operation.

Parameters

fd	file descriptor to read from.
buf	destination buffer.
len	number of bytes to read.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeReadFixed()

IoOperation IoOperation::makeReadFixed	(	int	fd,
		void *	buf,
		uint32_t	len,
		uint16_t	index,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a fixed-buffer read operation.

Parameters

fd	file descriptor to read from.
buf	destination buffer.
len	number of bytes to read.
index	registered buffer index.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeRecv()

IoOperation IoOperation::makeRecv	(	int	fd,
		void *	buf,
		uint32_t	len,
		int	flags,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a receive operation.

Parameters

fd	socket file descriptor.
buf	destination buffer.
len	number of bytes to receive.
flags	recv flags.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeRecvmsg()

IoOperation IoOperation::makeRecvmsg	(	int	fd,
		msghdr *	msg,
		int	flags,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a receive-message operation.

Parameters

fd	socket file descriptor.
msg	message header.
flags	recv flags.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeRecvmsgMulti()

IoOperation IoOperation::makeRecvmsgMulti	(	int	fd,
		uint16_t	group,
		msghdr *	msg,
		int	flags,
		CompletionHandler *	handler )

staticnoexcept

build a multishot receive-message operation.

Parameters

fd	socket file descriptor.
group	provided buffer group, the selected buffer is only valid during the callback.
msg	message header.
flags	recv flags.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makeRecvMulti()

IoOperation IoOperation::makeRecvMulti	(	int	fd,
		uint16_t	group,
		int	flags,
		CompletionHandler *	handler )

staticnoexcept

build a multishot receive operation.

Parameters

fd	socket file descriptor.
group	provided buffer group, the selected buffer is only valid during the callback.
flags	recv flags.
handler	handler to notify on completion.

Returns: initialized IoOperation.

◆ makeSend()

IoOperation IoOperation::makeSend	(	int	fd,
		const void *	buf,
		uint32_t	len,
		int	flags,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a send operation.

Parameters

fd	socket file descriptor.
buf	source buffer.
len	number of bytes to send.
flags	send flags.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeSendmsg()

IoOperation IoOperation::makeSendmsg	(	int	fd,
		const msghdr *	msg,
		int	flags,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a send-message operation.

Parameters

fd	socket file descriptor.
msg	message header.
flags	send flags.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeWrite()

IoOperation IoOperation::makeWrite	(	int	fd,
		const void *	buf,
		uint32_t	len,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a regular write operation.

Parameters

fd	file descriptor to write to.
buf	source buffer.
len	number of bytes to write.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ makeWriteFixed()

IoOperation IoOperation::makeWriteFixed	(	int	fd,
		const void *	buf,
		uint32_t	len,
		uint16_t	index,
		CompletionHandler *	handler,
		bool	linked = false )

staticnoexcept

build a fixed-buffer write operation.

Parameters

fd	file descriptor to write to.
buf	source buffer.
len	number of bytes to write.
index	registered buffer index.
handler	handler to notify on completion.
linked	link this SQE to the next one (io_uring only).

Returns: initialized IoOperation.

◆ operator=()

IoOperation & IoOperation::operator= ( const IoOperation & other )

noexcept

copy assignment operator.

Parameters

other other object to copy.

Returns: current object.

Member Data Documentation

◆ code

uint8_t join::IoOperation::code = 0

operation code.

◆ data

Data join::IoOperation::data = {}

operation code specific payload.

◆ group

uint16_t join::IoOperation::group = 0

provided buffer group.

◆ handler

CompletionHandler* join::IoOperation::handler = nullptr

handler to dispatch to on completion.

◆ index

uint32_t join::IoOperation::index = 0

index of this operation in the proactor pending ops (io_uring only).

◆ linked

bool join::IoOperation::linked = false

link this SQE to the next one (next executes only if this succeeds, io_uring only).

◆ more

bool join::IoOperation::more = false

true while a multishot operation stays armed.

◆ multishot

bool join::IoOperation::multishot = false

rearm the operation after each completion.

◆ resume

State join::IoOperation::resume {State::Idle}

state to restore when the current hold is released.

◆ ring

IoRingBuffer* join::IoOperation::ring = nullptr

buffer ring bound to this operation.

◆ state

std::atomic<State> join::IoOperation::state {State::Idle}

operation state.

The documentation for this struct was generated from the following files:

core/include/join/io_operation.hpp
core/src/io_operation.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Enumeration Documentation

◆ Opcode

◆ State

Constructor & Destructor Documentation

◆ IoOperation() [1/2]

◆ IoOperation() [2/2]

Member Function Documentation

◆ fd()

◆ makeAccept()

◆ makeAcceptMulti()

◆ makeConnect()

◆ makePoll()

◆ makePollMulti()

◆ makeRead()

◆ makeReadFixed()

◆ makeRecv()

◆ makeRecvmsg()

◆ makeRecvmsgMulti()

◆ makeRecvMulti()

◆ makeSend()

◆ makeSendmsg()

◆ makeWrite()

◆ makeWriteFixed()

◆ operator=()

Member Data Documentation

◆ code

◆ data

◆ group

◆ handler

◆ index

◆ linked

◆ more

◆ multishot

◆ resume

◆ ring

◆ state
