TcpAsyncSocket Class Reference

Class used to test the unix asynchronous stream socket API. More...

Inheritance diagram for TcpAsyncSocket:

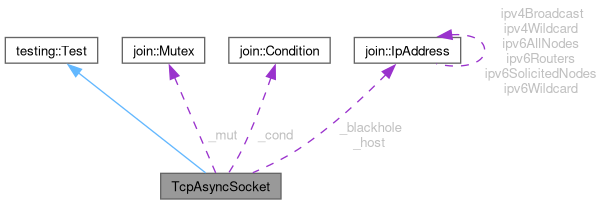

Collaboration diagram for TcpAsyncSocket:

Protected Member Functions
void	SetUp () override
	Sets up the test fixture.
void	TearDown () override
	Tears down the test fixture.

Static Protected Member Functions
static Tcp::AsyncSocket &	peer ()
	get the socket accepted by the echo server.
static void	onEchoRead (const std::error_code &ec, const char *data, size_t size, bool more)
	receive the data to send back.
static void	onEchoWrite (const std::error_code &ec, size_t size)
	send back the data received by the echo server.
static void	onEchoAccept (Tcp::Socket &&sock, const std::error_code &ec, bool more)
	adopt the socket accepted by the echo server.
static void	onWrite (const std::error_code &ec, size_t size)
	handler resubmitting a write from within itself.
static void	onConnect (const std::error_code &ec)
	handler retrying the connection from within itself.
static void	onRead (const std::error_code &ec, const char *data, size_t size, bool more)
	handler resubmitting a read from within itself.
static void	onReportMulti (const std::error_code &ec, const char *data, size_t size, bool more)
	report a multishot completion to the test thread.
static void	onReportWait (const std::error_code &ec, bool more)
	report a wait completion to the test thread.

Protected Attributes
Tcp::AsyncAcceptor	_server
	echo server.

Static Protected Attributes
static Mutex	_mut
	condition mutex.
static Condition	_cond
	condition variable.
static std::error_code	_code
	last reported error.
static int	_completions = 0
	number of completions reported.
static size_t	_transferred = 0
	number of bytes reported by the last completion.
static char	_buf [1024] = {}
	read buffer.
static bool	_more = false
	last reported multishot state.
static char	_echobuf [1024] = {}
	buffer used by the echo server.
static Tcp::AsyncSocket *	_current = nullptr
	socket used by the resubmitting handler.
static int	_rearms = 0
	number of resubmissions left to perform from the read handler.
static const IpAddress	_host = "::1"
	host.
static const IpAddress	_blackhole = "192.0.2.1"
	unreachable host keeping a connection attempt pending.
static const uint16_t	_port = 5034
	port.
static const uint16_t	_stallport = 5035
static const std::chrono::milliseconds	_timeout {1000}
	timeout.

Detailed Description

Class used to test the unix asynchronous stream socket API.

Member Function Documentation

onConnect()

static void TcpAsyncSocket::onConnect ( const std::error_code & ec )

inlinestaticprotected

handler retrying the connection from within itself.

Parameters

ec	error reported by the socket.

onEchoAccept()

static void TcpAsyncSocket::onEchoAccept ( Tcp::Socket && sock, const std::error_code & ec, bool more )

inlinestaticprotected

adopt the socket accepted by the echo server.

Parameters

sock	accepted socket.
ec	error reported by the acceptor.
more	true if the acceptation stays armed.

onEchoRead()

static void TcpAsyncSocket::onEchoRead ( const std::error_code & ec, const char * data, size_t size, bool more )

inlinestaticprotected

receive the data to send back.

Parameters

ec	error reported by the socket.
data	buffer holding the data received.
size	number of bytes read.
more	true if the read stays armed.

onEchoWrite()

static void TcpAsyncSocket::onEchoWrite ( const std::error_code & ec, size_t size )

inlinestaticprotected

send back the data received by the echo server.

Parameters

ec	error reported by the socket.
size	number of bytes written.

onRead()

static void TcpAsyncSocket::onRead ( const std::error_code & ec, const char * data, size_t size, bool more )

inlinestaticprotected

handler resubmitting a read from within itself.

Parameters

ec	error reported by the socket.
data	buffer holding the data received.
size	number of bytes read.
more	true if the read stays armed.

onReportMulti()

static void TcpAsyncSocket::onReportMulti ( const std::error_code & ec, const char * data, size_t size, bool more )

inlinestaticprotected

report a multishot completion to the test thread.

Parameters

ec	error reported by the socket.
data	buffer holding the data received.
size	number of bytes read.
more	true if the read stays armed.

onReportWait()

static void TcpAsyncSocket::onReportWait ( const std::error_code & ec, bool more )

inlinestaticprotected

report a wait completion to the test thread.

Parameters

ec	error reported by the socket.
more	true if the wait stays armed.

onWrite()

static void TcpAsyncSocket::onWrite ( const std::error_code & ec, size_t size )

inlinestaticprotected

handler resubmitting a write from within itself.

Parameters

ec	error reported by the socket.
size	number of bytes written.

peer()

static Tcp::AsyncSocket & TcpAsyncSocket::peer ( )

inlinestaticprotected

get the socket accepted by the echo server.

Returns

the socket accepted by the echo server.

SetUp()

void TcpAsyncSocket::SetUp ( )

inlineoverrideprotected

Sets up the test fixture.

TearDown()

void TcpAsyncSocket::TearDown ( )

inlineoverrideprotected

Tears down the test fixture.

Member Data Documentation

_blackhole

const IpAddress TcpAsyncSocket::_blackhole = "192.0.2.1"

staticprotected

unreachable host keeping a connection attempt pending.

_buf

char TcpAsyncSocket::_buf = {}

staticprotected

read buffer.

_code

std::error_code TcpAsyncSocket::_code

staticprotected

last reported error.

_completions

int TcpAsyncSocket::_completions = 0

staticprotected

number of completions reported.

_cond

Condition TcpAsyncSocket::_cond

staticprotected

condition variable.

_current

Tcp::AsyncSocket * TcpAsyncSocket::_current = nullptr

staticprotected

socket used by the resubmitting handler.

_echobuf

char TcpAsyncSocket::_echobuf = {}

staticprotected

buffer used by the echo server.

_host

const IpAddress TcpAsyncSocket::_host = "::1"

staticprotected

host.

_more

bool TcpAsyncSocket::_more = false

staticprotected

last reported multishot state.

_mut

Mutex TcpAsyncSocket::_mut

staticprotected

condition mutex.

_port

const uint16_t TcpAsyncSocket::_port = 5034

staticprotected

port.

_rearms

int TcpAsyncSocket::_rearms = 0

staticprotected

number of resubmissions left to perform from the read handler.

_server

Tcp::AsyncAcceptor TcpAsyncSocket::_server

protected

echo server.

_stallport

const uint16_t TcpAsyncSocket::_stallport = 5035

staticprotected

_timeout

const std::chrono::milliseconds TcpAsyncSocket::_timeout {1000}

staticprotected

timeout.

_transferred

size_t TcpAsyncSocket::_transferred = 0

staticprotected

number of bytes reported by the last completion.

---

The documentation for this class was generated from the following file:

• core/tests/tcp_async_socket_test.cpp
